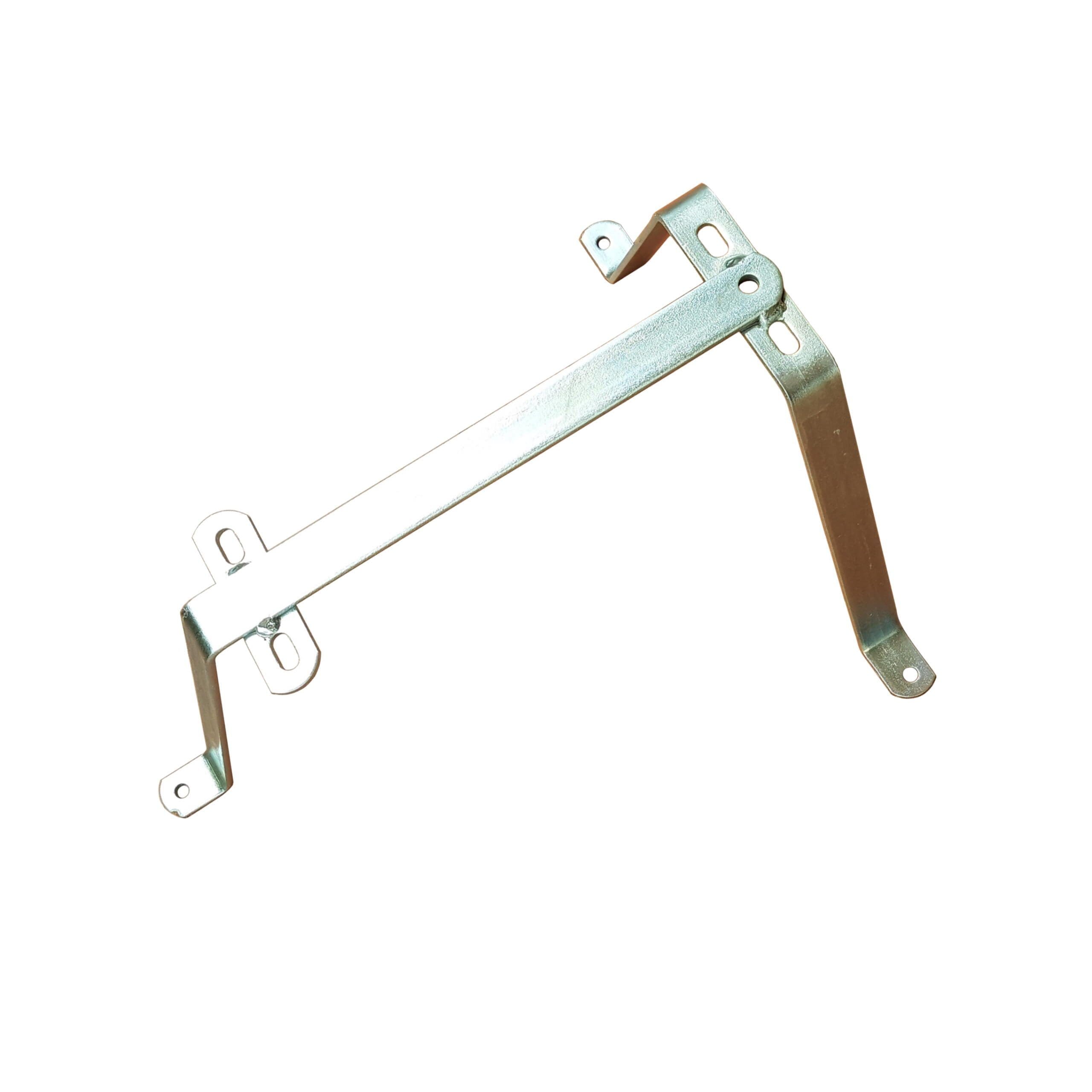

Tripod Bracket – 450mm

SKU: 0704-4000

R 212.75 incl.VAT

Out of stock

Join the waitlist to be emailed when this product becomes available

This is a 450mm tripod (three legged) wall-mount bracket which means a 450 mm offset from the mounting surface. It is galvanised for longevity.  Commonly called a 450mm tripod bracket, these are widely used to mount poles to walls to act as an antenna mast. The required offset depends on the application, usually a roof overhang.

Share

MAIN FEATURES:

• Tripod bracket
• 450mm offset
• Galvanised
• U-bolts and rawl bolts not included
General
Offset

450 mm

Wall-Mount Holes

3 @ 10mm

Pole-Mount Holes

4 @ 10mm (10mm adjustable)

Max. U-Bolt OD

80 mm

Dimensions (mm)

600 x 600 x 450

Material Thickness

5 mm

Material

Steel

Plating

Electro Galvanised (Zinc-Electroplated)

Mass

± 2.3 kg
