connector TNC male straight hex RF400 LMR400
connector TNC male straight hex RF400 LMR400

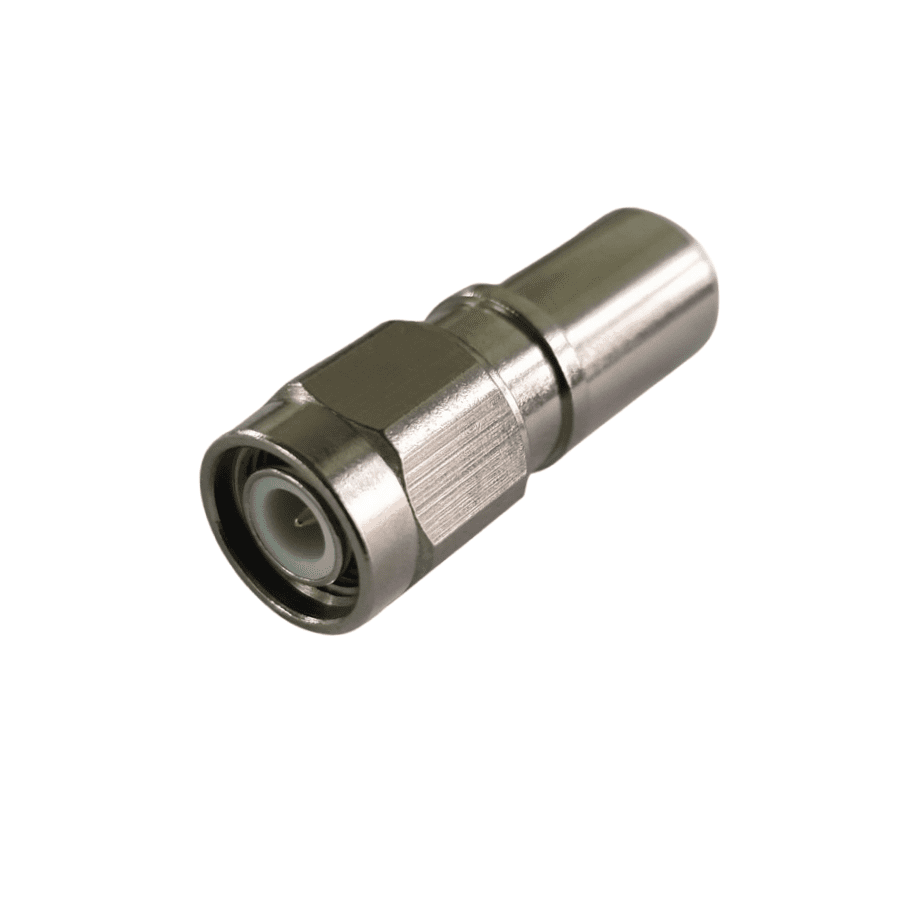

TNC Male Straight Connector, RF400, RG213, RG8, RG8A

Be the first to leave a review.
SKU: 0341-4008

R 70.15 incl.VAT

In stock

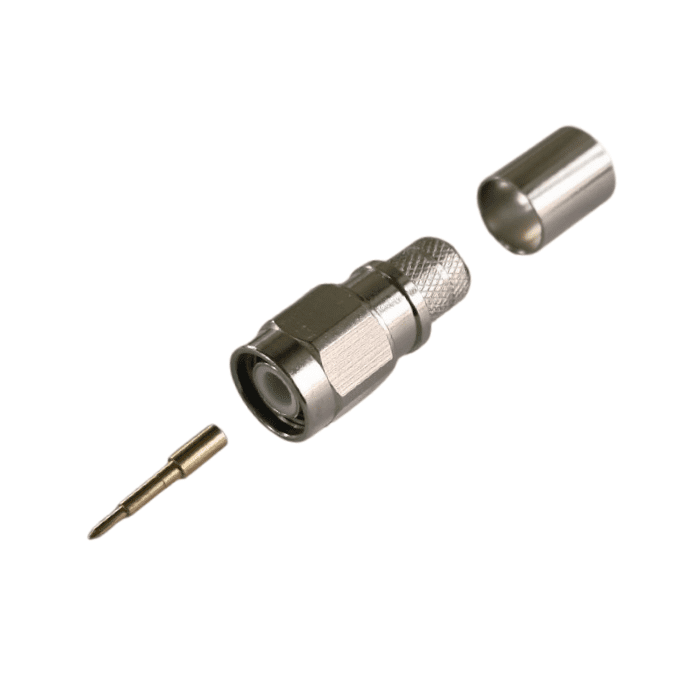

These crimp connectors are manufactured to fit RF400 or LMR400, RG-8, RG-8A, RG-213, Belden 9913, Belden 9914 and equivalent coaxial cable at 50 Ω impedance. These are suitable for use in many applications as it offers good performance with a VSWR ≤ 1.3 over a frequency range of 0 – 6 GHz.

Share

MAIN FEATURES:

• Fit for use with cable: RF400 or LMR400, RG-8, RG-8A, RG-213, Belden 9913, Belden 9914 & equivalents.
• Good VSWR
• Wide frequency range
Electrical
Frequency

DC to 6 GHz

Impedance

50 Ω

VSWR

≤ 1.3
Mechanical
Connector

TNC Male

Angle

Straight

Cable Use

Belden 9913 Cable, Belden 9914 Cable, LMR400 Cable, RF400 Cable, RG-213 Cable, RG-8 Cable, RG-8A Cable
Material & Plating
Center Conductor

Brass with Gold plating

Fastener/Body

Brass with Ternary Alloy plating

Dielectric

PTFE
