cable cat6e solid cca ftp f/utp uv-protected black
cable cat6e solid cca ftp f/utp uv-protected black

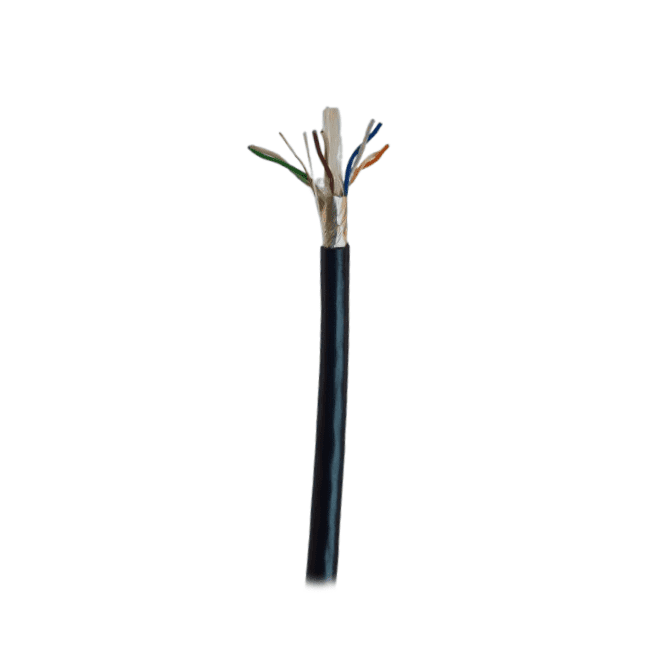

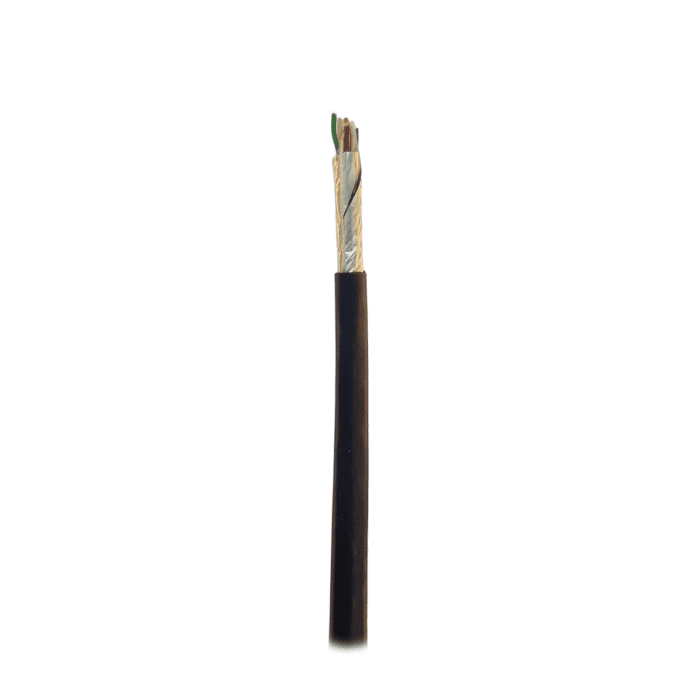

CAT6e FTP UV-Protected Solid CCA Cable, Outdoor Black

Be the first to leave a review.
SKU: 0814-0012

R 7.14 p/m incl.VAT

Out of stock

Join the waitlist to be emailed when this product becomes available

Foil Shielded Twisted Pairs (FTP) CAT6e Cable features Copper Clad Aluminium (CCA) Conductors. Ideal for indoor / outdoor use. Black in colour, UV protected. Rolls of 500 metres. Minimum order quantities apply. Priced per metre.

Share

General
Conformant Standards

IEC 60332-41, ISO 11801, TIA/EIA-5688.2
Electrical
Impedance

100±15Ω

Capacitance

56 nF/km

Peak Voltage

250 V

Insulation Resistance

≥ 20 MΩ/km

DC Resistance

< 74 Ω/km

Test Voltage

1.5 kV
Construction Materials
Cable Construction

F/UTP

Inner Conductor

Copper-Clad Aluminium

Core Insulation

Low-Density Polyethylene (LDPE)

Shielding

Overall: 4 Pairs Aluminised Polyester Foil Tape (100% coverage, 25% overlap), CCA Drain Wire

Jacket

Polyvinyl Chloride (PVC)
Dimensions
Inner Conductor Diameter

0.51 mm (24AWG)

Diameter Over Jacket

5.8±0.2 mm
Mechanical
Min. Single Bending Radius

24 mm

Min. Repeated Bending Radius

48 mm
Environmental
Operating Temperature

-20℃ to +70℃

Environmental Standards

RoHS
More
Length

500 m

Colour

Black

Tensile Strength

13.8 MPa
