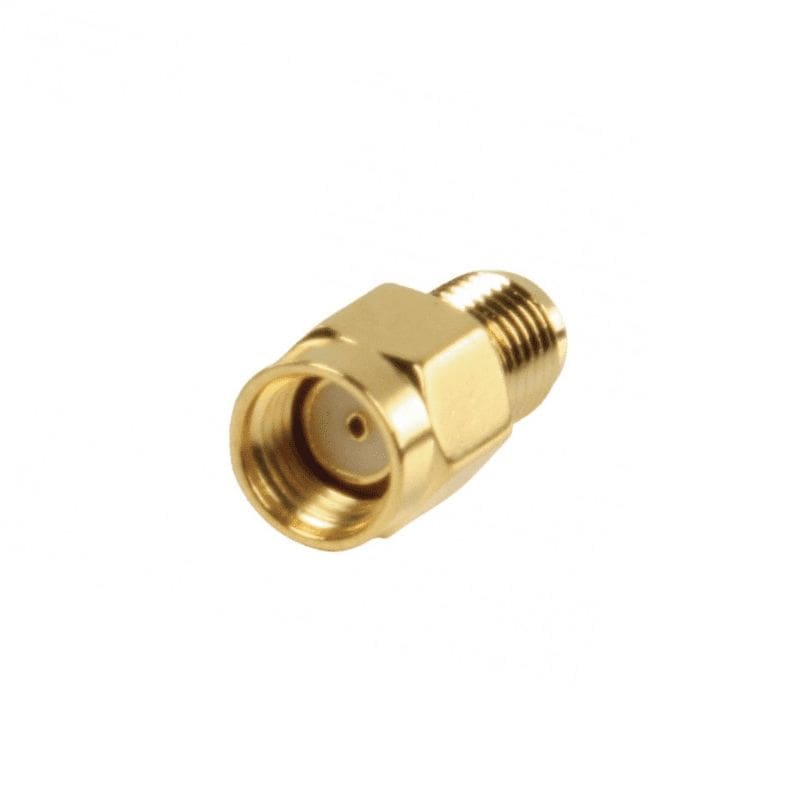

SMA Reverse Polarity Male to SMA Female Straight Adaptor

Be the first to leave a review.
SKU: 0200-0005

R 64.19 incl.VAT

In stock

This Reverse Polarity (RP) Male SMA adaptor offers a low insertion loss with a good VSWR. It is suitable for use in many applications at its rated performance. Features include: An insertion loss below 0.15 dB and a VSWR between 1.12 over a wide frequency range (0-12.4 GHz).

Share

Electrical
Frequency

DC to 12.4 GHz

Impedance

50 Ω

VSWR

≤ 1.12

Insertion Loss

≤ 0.15 dB (@6 GHz)

Dielectric Strength

≥ 1.0 kV (RMS) @ sea level

Dielectric Resistance

≥ 5 GΩ

Center Contact Resistance

≤ 3 mΩ

Outer Contact Resistance

≤ 2.5 mΩ
Mechanical
Mating Cycles

≥ 500 cycles

Connectors

SMA RP Male to SMA Female

Angle

Straight
Material & Plating
Outer Conductor

Brass with Gold plating

Center Conductor

Beryllium Bronze with Gold Plating

Fastener/Body

Brass with Gold plating

Dielectric

PTFE
Environmental
Operating Temperature

-65°C to +165°C

Environmental Standards

RoHS
