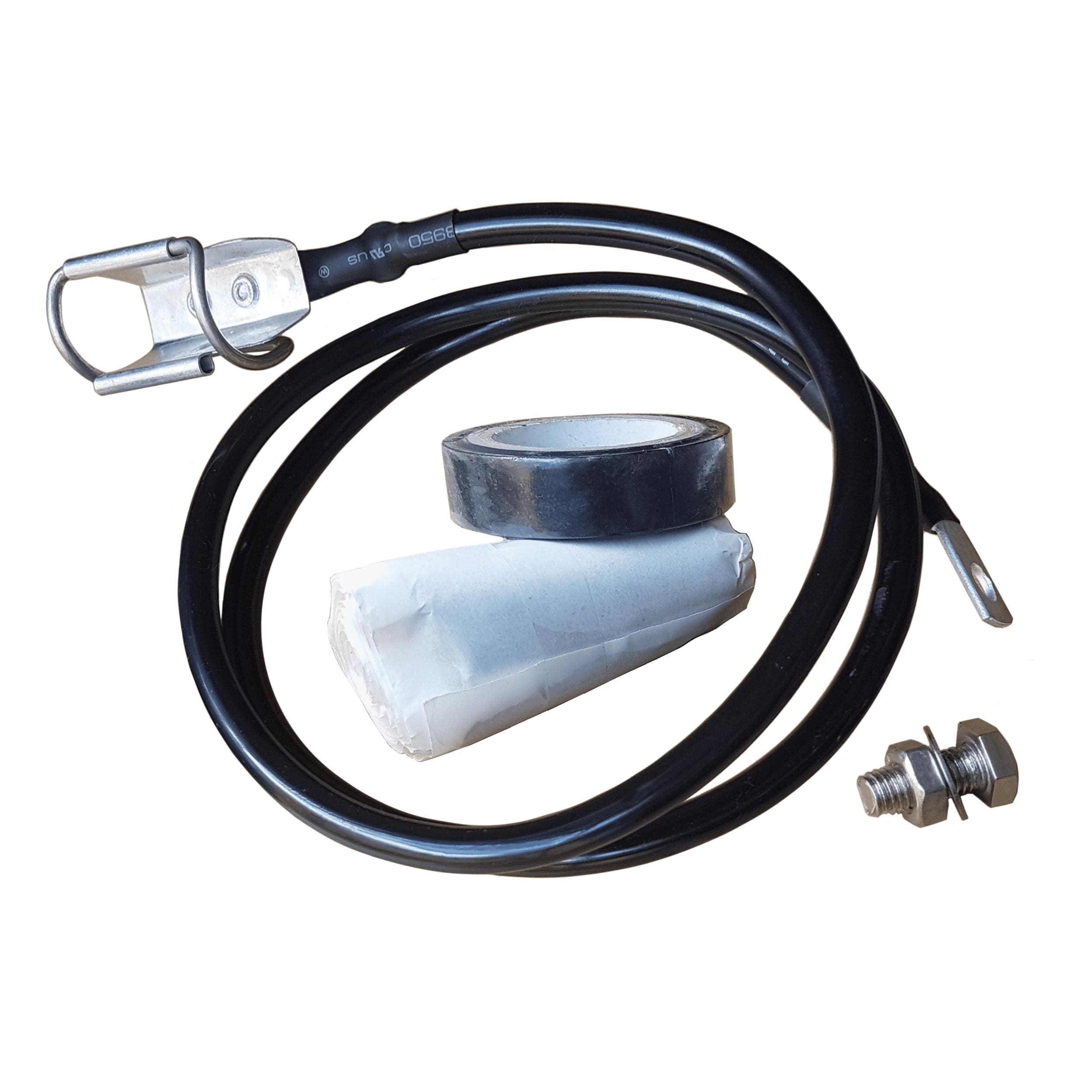

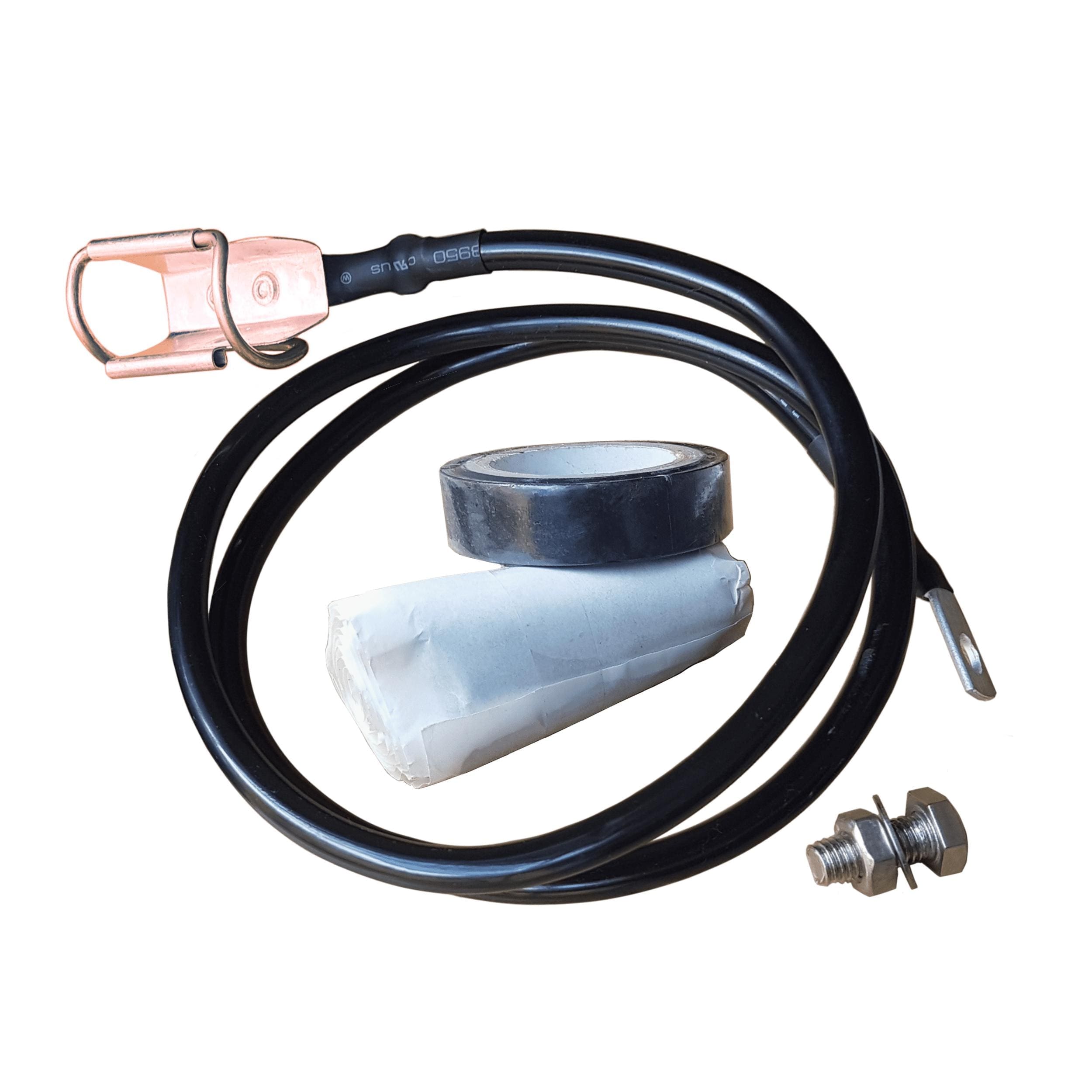

Earthing Kit – 7/8″ Aluminium & Copper Coaxial Cable

This Earthing Kit is suitable for use with 7/8″ Low Loss Coaxial Cable and is also known as a 7/8″ grounding kit. The interface to the grounding cable is available in aluminium and copper variants. Note that the kit includes waterproofing components i.e. vulcanising tape and insulation tape.

Share

General
Size

7/8"

Grounding Wire Size

AWG 6

Grounding Wire Length

1 m

Ground Interface Material

Stainless Steel

Cable Interface Material

Aluminium, Copper

Current Handling

> 50 kA

Contact Resistance

< 4 mΩ

Operating Temperature

-40°C to +85°C

IP Rating

IP67 (Weatherproofing)

General
Operating Temperature

-40°C to +85°C

IP Rating

IP67 (Weatherproofing)
