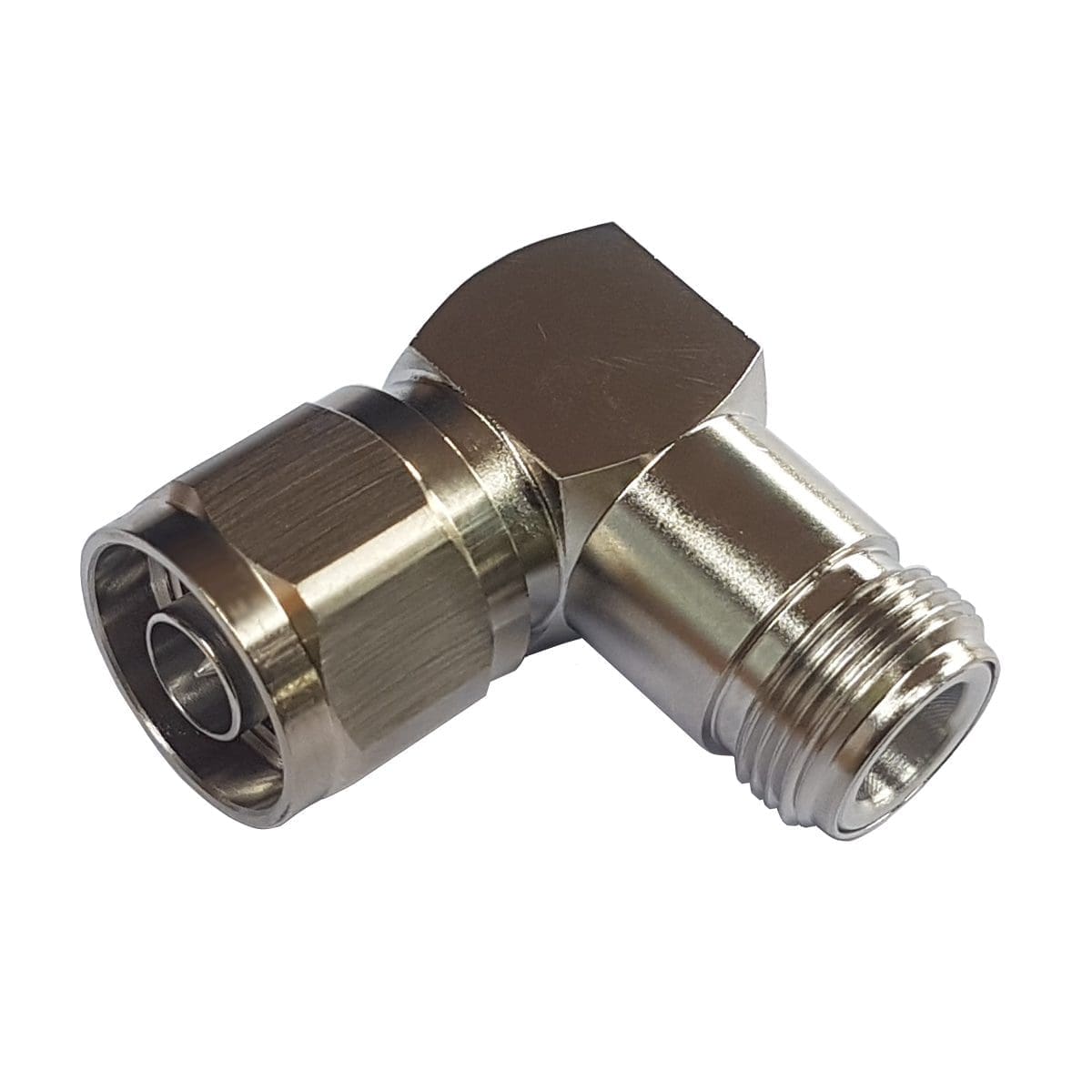

N-Type Male to Female Right Angle Adaptor

Be the first to leave a review.
SKU: 0200-0001

R 112.70 incl.VAT

In stock

This adaptor offers a low insertion loss with an excellent VSWR. It is suitable for use in many applications with good performance. Features include: Low PIM with a VSWR between 1.04 and 1.07 over a wide frequency range (0-7.5 GHz).

Share

Electrical
Frequency

DC to 7.5 GHz

Impedance

50 Ω

VSWR

≤ 1.07 (1-2.7GHz), ≤ 1.04 (0-1GHz)

Passive Intermodulation (PIM)

≤ -160 dBc @ 2x20W

Insertion Loss

≤ 0.08 dB (@2.2 GHz)

Return Loss

≥ 30 dB (1-2.7GHz), ≥ 35 dB (0-1GHz)

Dielectric Strength

≥ 4.0 kV (RMS) @ sea level

Dielectric Resistance

≥ 10 GΩ

Center Contact Resistance

≤ 0.4 mΩ

Outer Contact Resistance

≤ 0.2 mΩ
Mechanical
Mating Cycles

≥ 500 cycles

Termination Cable Retention

≥ 500 N

Connectors

N-Type Male to N-Type Female

Angle

Right Angle
Material & Plating
Outer Conductor

Brass with CuSnZn3 plating

Center Conductor

Bronze with Silver plating

Fastener/Body

Brass with CuSnZn3 plating

Dielectric

PTFE
Environmental
Operating Temperature

-40°C to +85°C

Environmental Standards

RoHS
