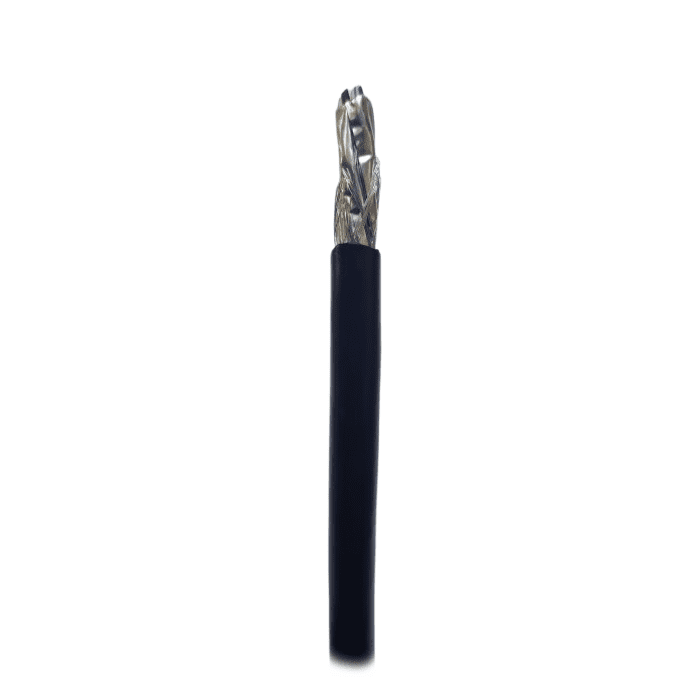

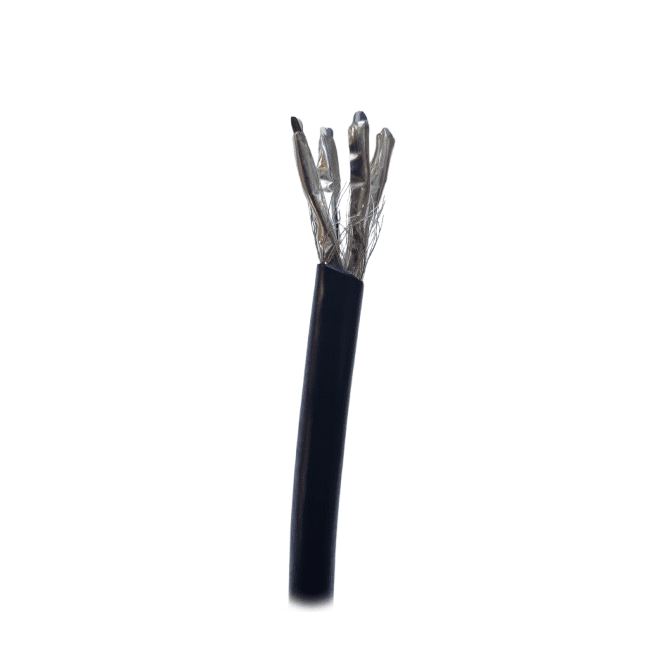

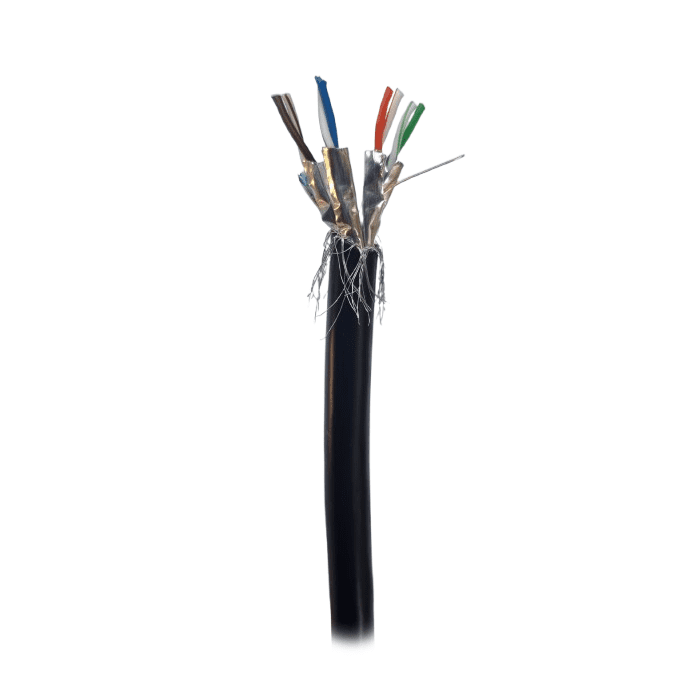

CAT6a S/FTP UV-Protected Solid Copper Cable, Outdoor Black

Be the first to leave a review.
SKU: 0814-0002

R 20.08 p/m incl.VAT

In stock

CAT6a Cable featuring Bare Solid Copper Conductors. Each Foil-Shielded Twisted Pair (FTP) and overall braiding minimises crosstalk and interference. With its UV-Protected jacket, the cable is ideal for both indoor and outdoor use. Black in colour. Rolls of 500 metres. Minimum order quantities apply. Priced per metre.

Share

General
Conformant Standards

ANSI/TIA-568-C.2, IEC 60603-7, ISO 11801

PoE Application

IEEE 802.3bt PoE++ Type 4
Electrical
Impedance

100±15Ω (1-100MHz), 100±18Ω (100-250MHz), 100±25Ω (250-500MHz)

Capacitance

≤ 1600 pF/km

Velocity

70%

Peak Voltage

80 V

Insulation Resistance

≥ 500 MΩ/km

Propagation Delay (Nominal)

535ns/100m @ 500MHz

Delay Skew

≤ 25 ns/100m

DC Resistance

≤ 9.5Ω/100m (max)

Test Voltage

1000 V
Construction Materials
Cable Construction

S/FTP

Inner Conductor

Bare Solid Copper

Core Insulation

Polyethylene (PE)

Shielding

Each Pair: Aluminised Polyester Tape (15% min. overlap), Overall: 4 Pairs Shielded Aluminum-Magnesium Alloy Braiding (16/4/0.12mm, coverage 40%)

Jacket

Polyvinyl Chloride (PVC)
Dimensions
Inner Conductor Diameter

0.57 mm (23AWG)

Diameter Over Jacket

7.5mm±0.2mm
Mechanical
Min. Single Bending Radius

30 mm

Min. Repeated Bending Radius

60 mm

Max. Tensile Force

100 N

Mass

± 0.065 kg/m
Environmental
Operating Temperature

-20℃ to +60℃

Installation Temperature

0℃ to +50℃

Storage Temperature

-20℃ to +70℃

Environmental Standards

RoHS
More
Length

500 m

Colour

Black
Freq. (MHz) Att. (dB/100m) Return Loss (dB) NEXT (dB/100m) ELFEXT dB/100m) PS NEXT (dB/100m) PS ELFEXT (dB/100m) Phase Delay (ns/100m)
1 2 20 74.5 68 72.3 65 570
4 3.7 23 65.3 56 63.3 53 552
10 5.9 25 59.3 48 57.3 45 545
20 8.3 25 54.8 42 52.8 39 541.2
62.5 14.9 21.5 47.4 32.1 45.4 29.1 538.5
100 19 20 44.3 28 42.3 25 537.6
250 31 17.3 38.2 20 36.5 17 536.1
500 45.4 15.2 33.7 14 31.8 11 535.1
