coupler 10db

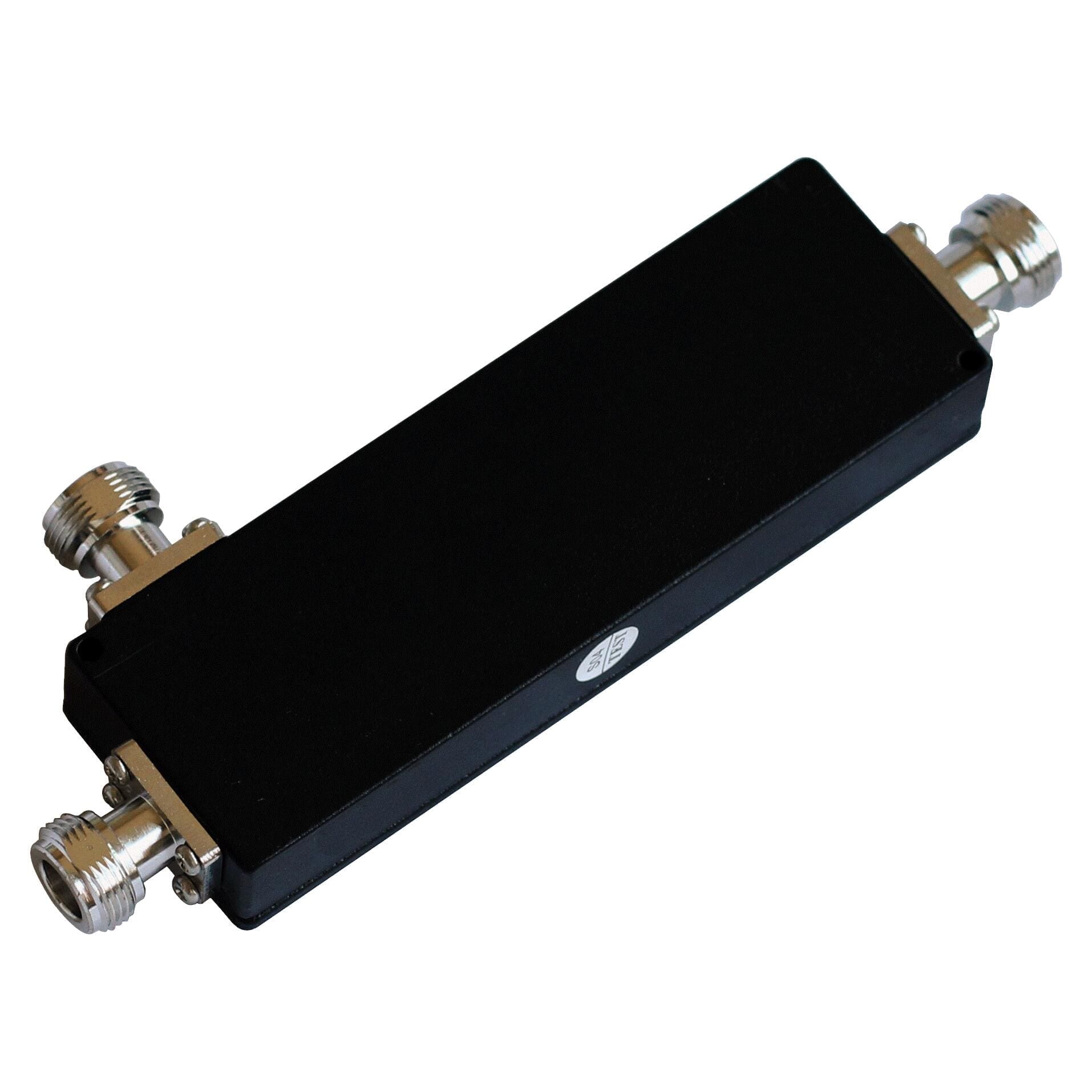

10dB Directional Coupler, N-Type Female, 800-2700MHz

Be the first to leave a review.
SKU: 0403-0002

R 366.95 incl.VAT

Out of stock

Join the waitlist to be emailed when this product becomes available

This 10dB Directional Coupler with 50Ω Impedance is capable of handling high power (300W). Featuring low In-Band Ripple (± 1.0 dB) and VSWR (≤ 1.25). The rated frequency range for operation at the specified performance is 800MHz – 2700MHz. It features three N-type female connectors as interface. With low Passive Intermodulation (PIM  ≤ -155 dBc) and being rated IP65, its performance is sure to be reliable for both indoor and outdoor environments.

Share

MAIN FEATURES:

• Wide Bandwidth
• Low PIM, VSWR & Insertion Loss
• High Power Handling
• High Reliability
Electrical
Frequency

800 to 2700 MHz

Coupling

10 dB

Insertion Loss

≤ 0.8 dB

In-band Ripple

± 1.0 dB

Return Loss

≤ -19 dB

VSWR

≤ 1.25

Directivity

≥ 20 dB

Impedance

50 Ω

Maximum Power

300 W

Passive Intermodulation (PIM)

≤ -155 dBc @ 2×20 W
Mechanical
Connector

N-Type Female

Operating Temperature

-35°C to +75°C

Storage Temperature

-40°C to +85°C

Relative Humidity

5% to 95%

Cavity Material

Aluminium with Silver plating

Connector Material

Copper with Silver plating

IP Rating

IP65
