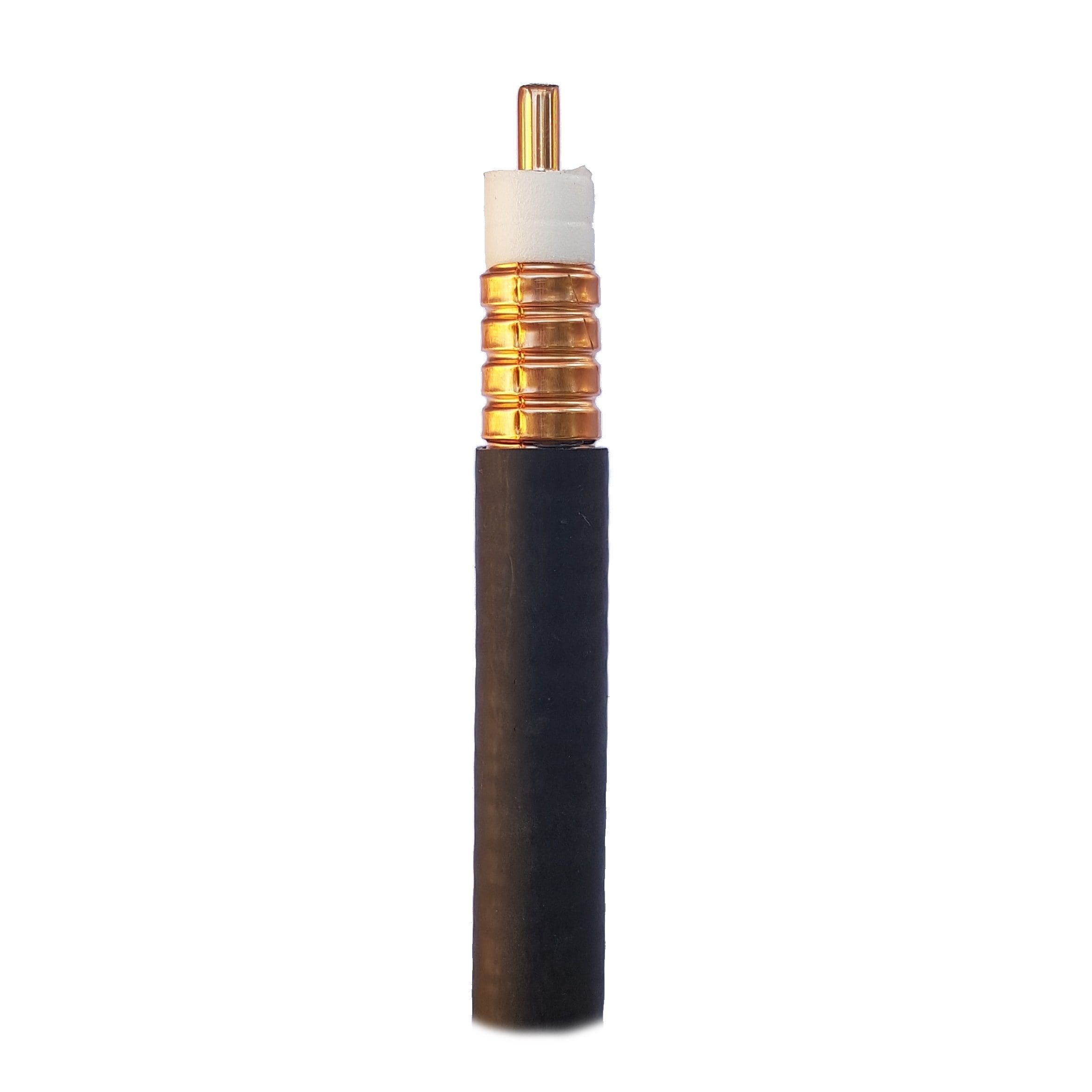

1/2″ Corrugated Low Loss Coaxial Cable

SKU: 0111-1000

R 48.17 p/m incl.VAT

In stock

This 1/2″ corrugated coaxial cable is a low loss cable. It is also known as 1/2″ corrugated Radio frequency (RF) coaxial cable. This 50 Ohm cable is widely used in the mobile cellular network industry for various indoor and outdoor applications such as DAS systems. With its UV-protected jacket and good performance, it is also ideal for outdoor applications. Minimum order quantities apply (Quantity selector indicates MOQ). Priced per meter.

Share

General
Conformant Standards

IEC 62321-4:2013+A1:2017, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017
Electrical
Impedance

50±1 Ω

Capacitance

76.0 pF/m

Velocity

88 %

VSWR

≤ 1.10 (0.8-1.0GHz), ≤ 1.13 (1.7-2.2GHz), ≤ 1.15 (2.2-2.7GHz)

Cutoff Frequency

8.8 GHz

Peak Power

40 kW

Peak Voltage

1.60 kV

Shielding Effectiveness

> 120 dB (10MHz & up)

Insulation Resistance

5 GΩ x km
Construction Materials
Inner Conductor

Copper-Clad Aluminium

Dielectric

Foam Polyethylene (PE)

Outer Conductor

Corrugated Copper Tube

Jacket

Black Polyethylene (PE)
Dimensions
Inner Conductor Diameter

4.80 mm

Dielectric Diameter

12.30 mm

Outer Conductor Diameter

13.80 mm

Diameter Over Jacket

15.70 mm
Mechanical
Min. Single Bending Radius

50 mm

Min. Repeated Bending Radius

125 mm

Min. Number of Bends

15

Max. Tensile Force

1.1 kN
Environmental
Operating Temperature

-55°C to +85°C

Installation Temperature

-40°C to +60°C

Storage Temperature

-55°C to +85°C

Environmental Standards

RoHS
Frequency (MHz) Attenuation (dB/100m) Average Power (kW)
100 2.17 3.94
150 2.67 3.17
200 3.10 2.75
280 3.69 2.27
450 4.74 1.80
800 6.45 1.33
900 6.87 1.25
1000 7.28 1.18
1500 9.08 0.95
1800 10.05 0.86
2000 10.66 0.81
2200 11.24 0.77
2400 11.80 0.75
2500 12.08 0.73
3000 13.39 0.65
