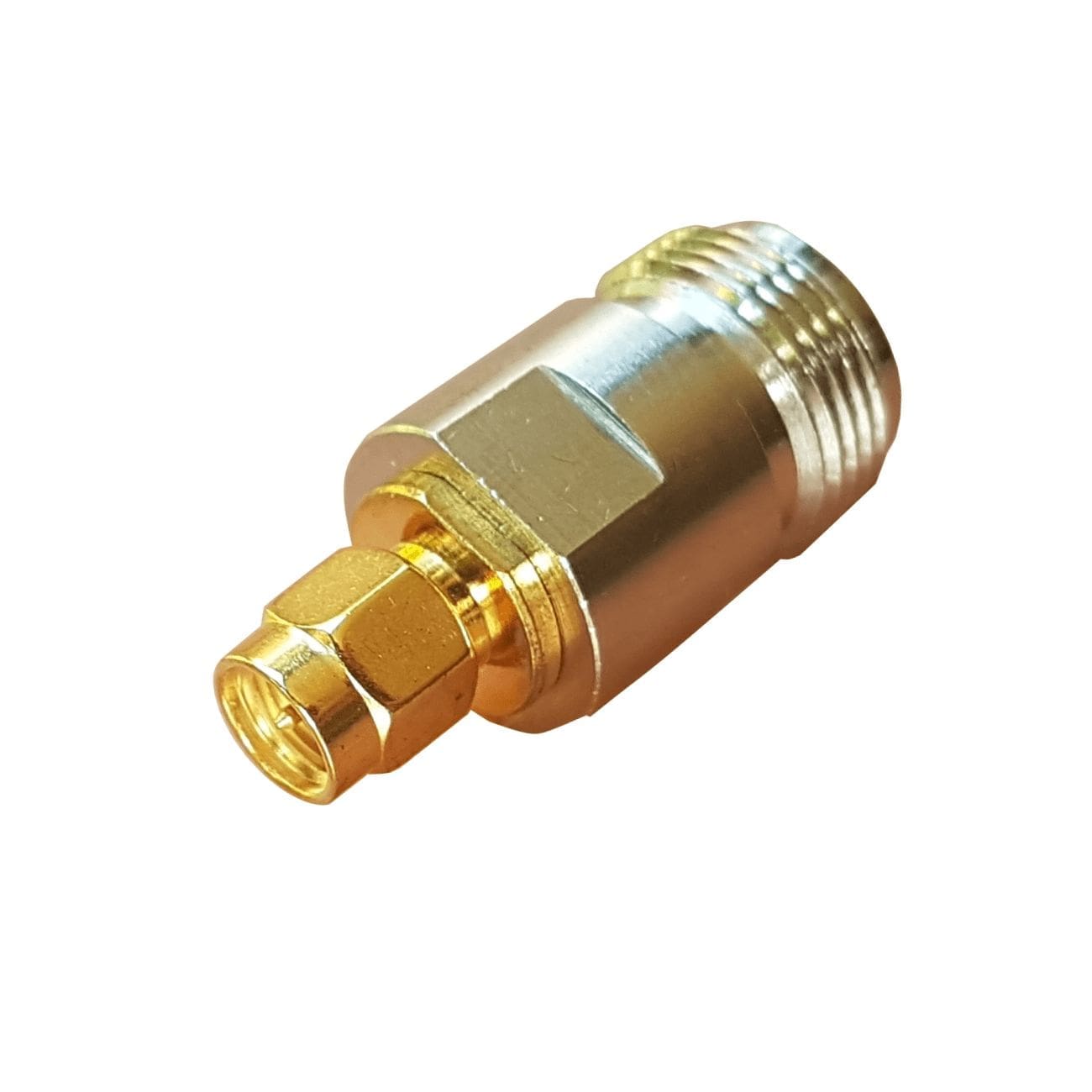

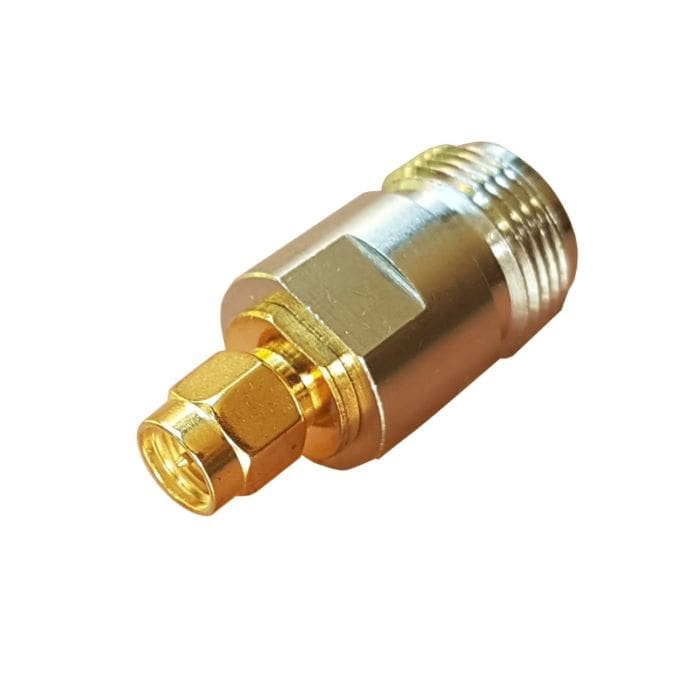

SMA Male to N-Type Female Straight Adaptor

Be the first to leave a review.
SKU: 0200-0009

R 46.00 incl.VAT

In stock

This adaptor offers a low insertion loss with a good VSWR. It is suitable for use in many applications at its rated performance. Features include: An insertion loss below 0.10 dB and a VSWR between 1.1 and 1.2 over a wide frequency range (0-6 GHz).

Share

Electrical
Frequency

DC to 6 GHz

Impedance

50 Ω

VSWR

≤ 1.15 (0-3GHz), ≤ 1.20 (3-6GHz)

Insertion Loss

≤ 0.1 dB
Mechanical
Mating Cycles

≥ 500 cycles

Connectors

SMA Male to N-Type Female

Angle

Straight
Material & Plating
Outer Conductor

Brass with Gold plating

Center Conductor

Beryllium Bronze with Gold Plating

Fastener/Body

Brass with Gold plating

Dielectric

PTFE
Environmental
Operating Temperature

-40°C to +85°C

Environmental Standards

RoHS
