coaxial cable-7/8 inch Low Loss copper

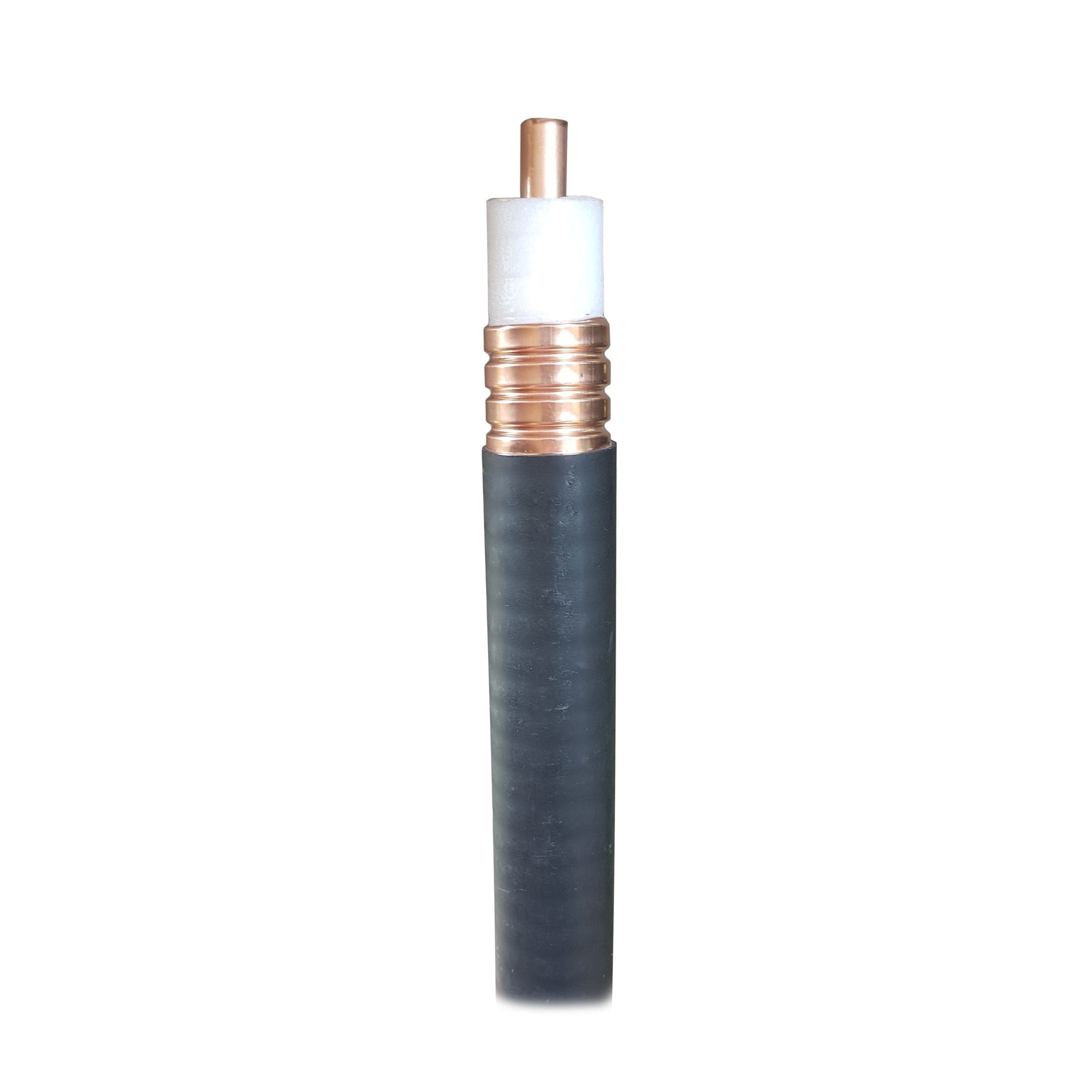

7/8″ Corrugated Low Loss Coaxial Feeder Cable – Copper

Be the first to leave a review.
SKU: 0111-0002

R 121.65 p/m incl.VAT

In stock

This 7/8″ corrugated copper coaxial cable is a low loss cable. It is also known as 7/8″ coaxial feeder cable. This Radio frequency (RF) coaxial cable, at 50 Ohm, is widely used in the mobile cellular network industry for various indoor and outdoor applications. With its LSZH UV-protected jacket and good performance, it is ideal for indoor and outdoor applications. Minimum order quantities apply (quantity selector indicates MOQ). Priced per meter.

Share

General
Conformant Standards

IEC 62321-4:2013+A1:2017, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-7-2:2017, IEC 62321-8:2017
Electrical
Impedance

50±1 Ω

Capacitance

75 pF/m

Velocity

89%

VSWR

≤ 1.10 (0.8-1.0GHz), ≤ 1.13 (1.7-2.2GHz), ≤ 1.15 (2.2-2.7GHz)

Cutoff Frequency

5.2 GHz

Peak Power

91 kW

Peak Voltage

3.00 kV

Shielding Effectiveness

> 120 dB (10MHz & up)

Insulation Resistance

5 GΩ x km
Construction Materials
Inner Conductor

Smooth Copper Tube

Dielectric

Foam Polyethylene (PE)

Outer Conductor

Corrugated Copper Tube

Jacket

UV-LSZH Black (UV Stabilised Low Smoke Zero Halogen)
Dimensions
Inner Conductor Diameter

9 mm

Dielectric Diameter

22.3 mm

Outer Conductor Diameter

24.9 mm

Diameter Over Jacket

27.5 mm
Mechanical
Min. Single Bending Radius

90 mm

Min. Repeated Bending Radius

250 mm

Min. Number of Bends

15

Bending Moment

18 Nm

Max. Tensile Force

1.47 kN
Environmental
Operating Temperature

-55°C to +85°C

Installation Temperature

-40°C to +60°C

Storage Temperature

-55°C to +85°C

Environmental Standards

RoHS
Frequency (MHz) Attenuation (dB/100m) Average Power (kW)
200 1.70 4.90
450 2.66 3.27
800 3.64 2.45
900 3.88 2.26
1000 4.10 2.18
1500 5.18 1.79
1800 5.76 1.66
2000 6.13 1.55
2200 6.49 1.48
