RRU BBU DC Cable 2 core 6mm Squared

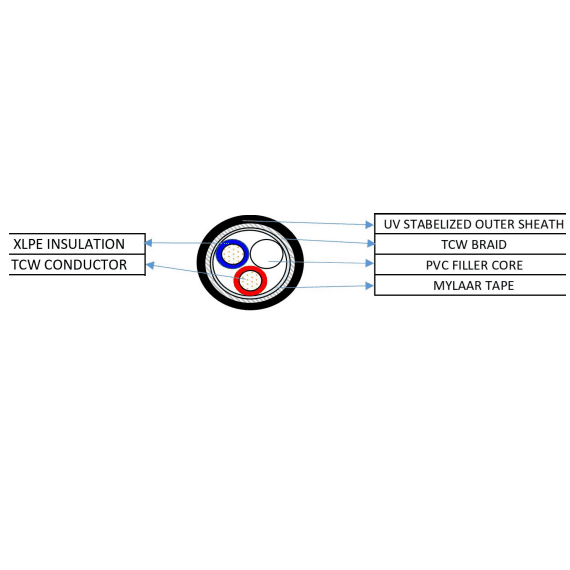

RRU BBU DC Cable 2 core 6mm Squared Diagram

RRU Cable, 2 x 6mm² Red/Blue DC Flexible Tinned Cu/XLPE & Mylar

Be the first to leave a review.
SKU: 4000-0156

R 63.25 p/m incl.VAT

In stock

This Red & Blue 6mm² DC cable is widely used with RRU/BBU services and control, tower mounted equipment and power circuits on earthed systems. It is used in conjunction with clamping systems, installed in cable trays, ladders, ducts and tower clamps. Minimum order quantity is 100m. Priced per metre.

Share

Electrical
Jacket Spark Test Voltage

5 kV AC during insulation and sheathing stage

HV Between Cores

3.5 kV AC for 5 minutes after sheathing stage

Insulation Resistance

61.0 MΩ/km @ 70°C

Inner Conductor DC Resistance

3.08 Ω/km @ 20°C
Construction Materials
Inner Conductor

Tinned Copper Wire (Class 5)

Core Insulation

XLPE (Red & Blue)

Filler Core

PVC (Polyvinyl Chloride)

Shield

Tinned Copper Braid

Binder

Mylar Tape

Jacket

UV-PVC Black (UV Stabilised Polyvinyl Chloride)
Dimensions
Inner Conductor Diameter

~3.21 mm (2 x 6mm²)

Inner Insulation Diameter

~4.81 mm

Inner Insulation Thickness

0.8 mm

Strands/Size

0.3mm

Filler Core Outer Diameter

4.8 mm

Shield Strands/Size

24/0.2mm

Sheath Thickness

1.8 mm

Sheath Diameter

13.80 mm
