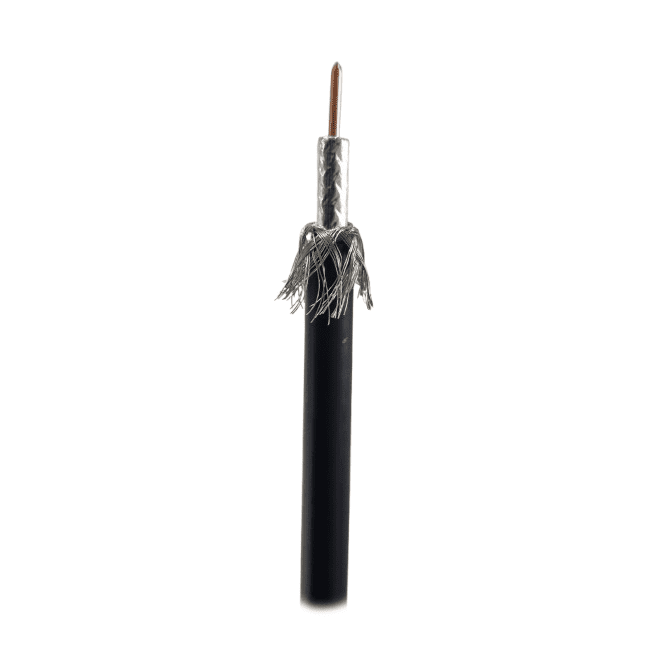

cable RF300 LMR300

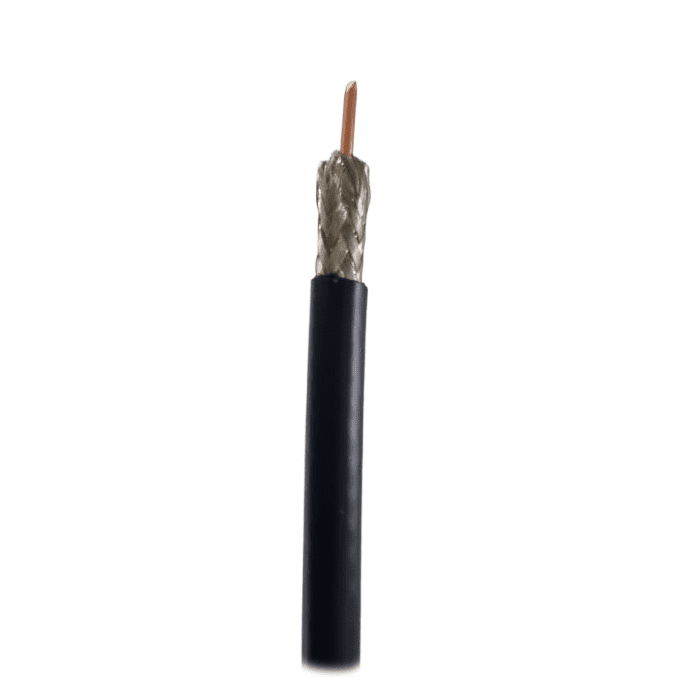

RF300 Coaxial Cable (LMR300 Equivalent) - Image 2
cable RF300 LMR300

RF300 Coaxial Cable (LMR300 Equivalent)

Be the first to leave a review.
SKU: 0111-3003

R 23.58 p/m incl.VAT

In stock

RF300 Radio frequency (RF) flexible coaxial cable at 50 Ohm, is used as an equivalent for LMR300. With its UV-protected jacket and good performance, it is ideal for various applications. Minimum order quantities apply. Priced per meter.

Share

Electrical
Impedance

50 Ω

Capacitance

79 pF/m

Velocity

85 %

Shielding Effectiveness

> 90 dB

Inner Conductor DC Resistance

7.27 Ω/km

Outer Conductor DC Resistance

14.31 Ω/km
Construction Materials
Inner Conductor

Copper-Clad Aluminium

Dielectric

Foam Polyethylene (PE)

Outer Conductor

Bonded Aluminium Foil & Tinned Copper Braid

Jacket

Black Polyethylene (PE)
Dimensions
Inner Conductor Diameter

1.78 mm

Dielectric Diameter

4.57 mm

Outer Conductor Diameter

5.50 mm

Diameter Over Jacket

7.60 mm
Mechanical
Min. Single Bending Radius

30 mm
Environmental
Operating Temperature

-40°C to +80°C

Installation Temperature

-40°C to +80°C

Storage Temperature

-40°C to +80°C
Frequency (MHz) Attenuation (dB/100m) Average Power (kW)
30 3.50 1.78
50 4.50 1.38
150 7.90 0.77
220 9.60 0.65
450 13.80 0.45
900 19.90 0.31
1500 26.00 0.24
1800 28.70 0.22
2000 30.30 0.21
2500 34.20 0.18
5800 65.00 0.11
