splitter 4-way square N-type female 696MHz to 3800MHz

4-Way High Power Cavity Splitter, N-Type Female, 800-2700MHz

Be the first to leave a review.
SKU: 0504-0003

R 489.27 incl.VAT

Out of stock

Join the waitlist to be emailed when this product becomes available

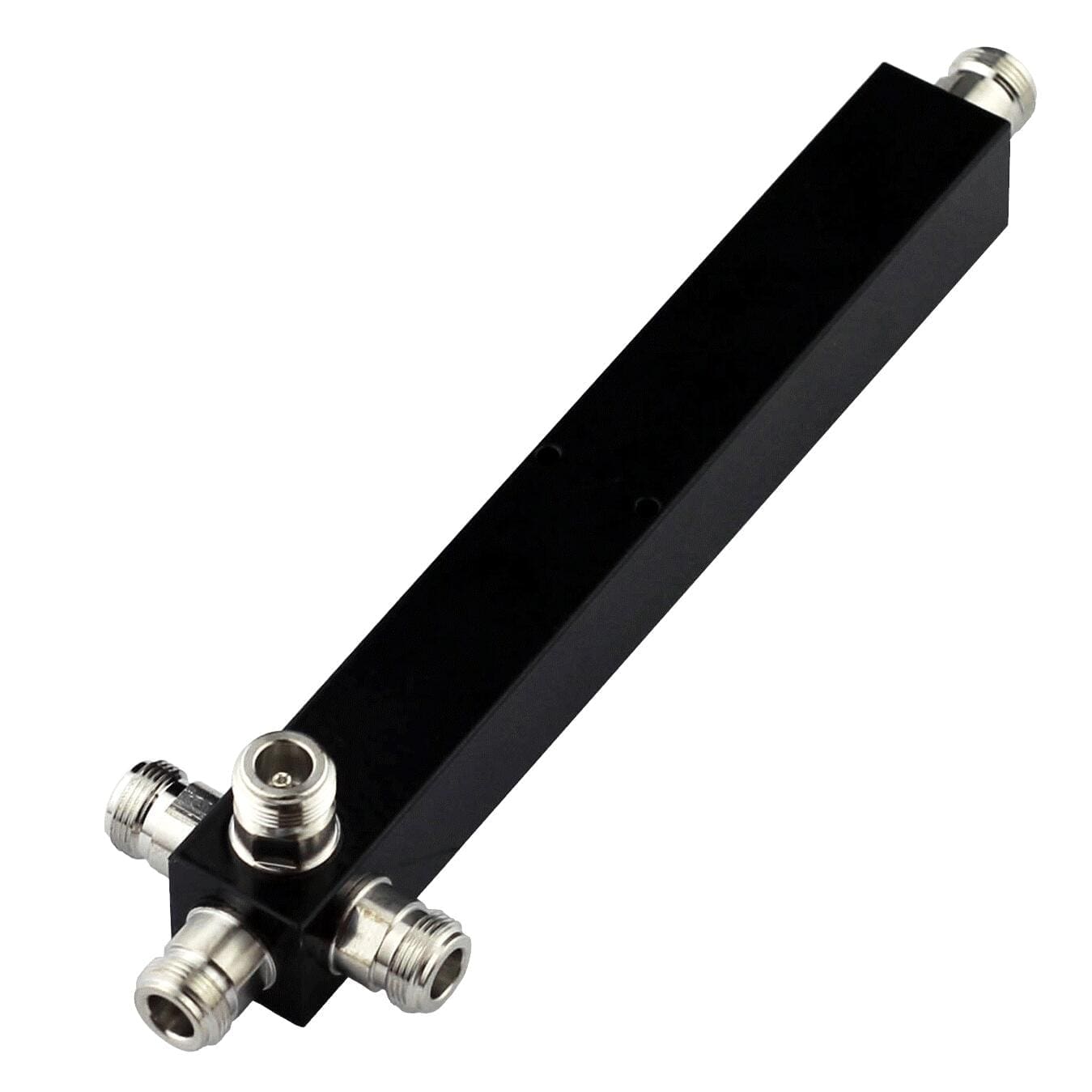

This 50Ω 4-way power cavity splitter, rated at 300W, is able to handle high power over a wide frequency range (800MHz – 2700MHz). It features five N-type female connections (connectors) as interface. Having low Passive Intermodulation (PIM  ≤ -155 dBc), insertion loss (≤ 6.3 dB), and rated IP65, its performance is sure to be reliable for both indoor and outdoor environments.

Share

MAIN FEATURES:

• Multiple-Band Frequency Ranges
• High Reliability
• Easy mounting (Without bracket)
Electrical
Frequency

800 to 2700 MHz

Insertion Loss

≤ 6.3 dB

Return Loss

≤ -19 dB

VSWR

≤ 1.25

Impedance

50 Ω

Maximum Power

300 W

Passive Intermodulation (PIM)

≤ -155 dBc @ 2×20 W
Mechanical
Shape

Square

Connector

N-Type Female

Operating Temperature

-25°C to +70°C

Storage Temperature

-40°C to +85°C

Relative Humidity

5% to 95%

Cavity Material

Aluminium with Silver plating

Connector Material

Copper with Silver plating

IP Rating

IP65
