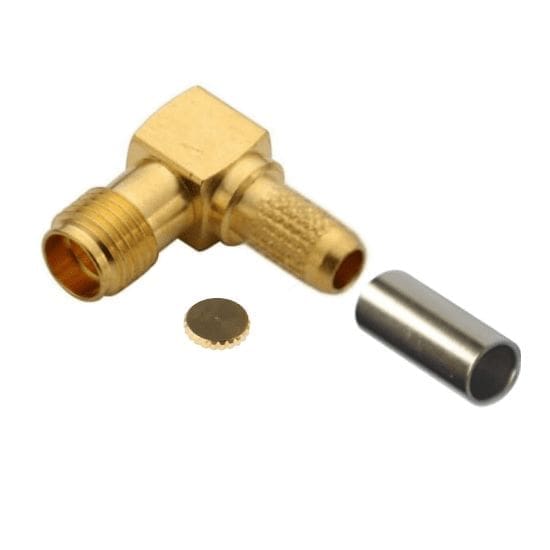

connector SMA female right angle RF195

SMA Female Right Angle Connector, RF195, RG58, RG142

Be the first to leave a review.
SKU: 0341-1956

R 45.85 incl.VAT

In stock

These crimp connectors are manufactured to fit RF195 or LMR195, RG-142, RG-58 equivalents, at 50 Ω impedance. Suitable for use in many applications. Features include: Low insertion loss with a VSWR ≤ 1.23 over frequency range of 0-6 GHz.

Share

MAIN FEATURES:

• Fit for use with cable: RF195 or LMR195, RG-142, RG-58 equivalents.
• Good VSWR
• Wide frequency range
Electrical
Frequency

DC to 12.4 GHz

Impedance

50 Ω

VSWR

≤ 1.23

Insertion Loss

≤ 0.15 dB (@6 GHz)

Dielectric Strength

≥ 1.0 kV (RMS) @ sea level

Dielectric Resistance

≥ 5 GΩ

Center Contact Resistance

≤ 3 mΩ

Outer Contact Resistance

≤ 2.5 mΩ
Mechanical
Mating Cycles

≥ 500 cycles

Connector

SMA Female

Angle

Right Angle

Cable Use

LMR195 Cable, RF195 Cable, RG-142 Cable, RG-58 Cable
Material & Plating
Center Conductor

Brass with Gold plating

Fastener/Body

Brass with Gold plating

Dielectric

PTFE
Environmental
Operating Temperature

-65°C to +165°C

Environmental Standards

RoHS
