Single Mode 2-Core LC-LC Outdoor Armoured FTTA Fibre Cable

Select fibre cable length to view pricing

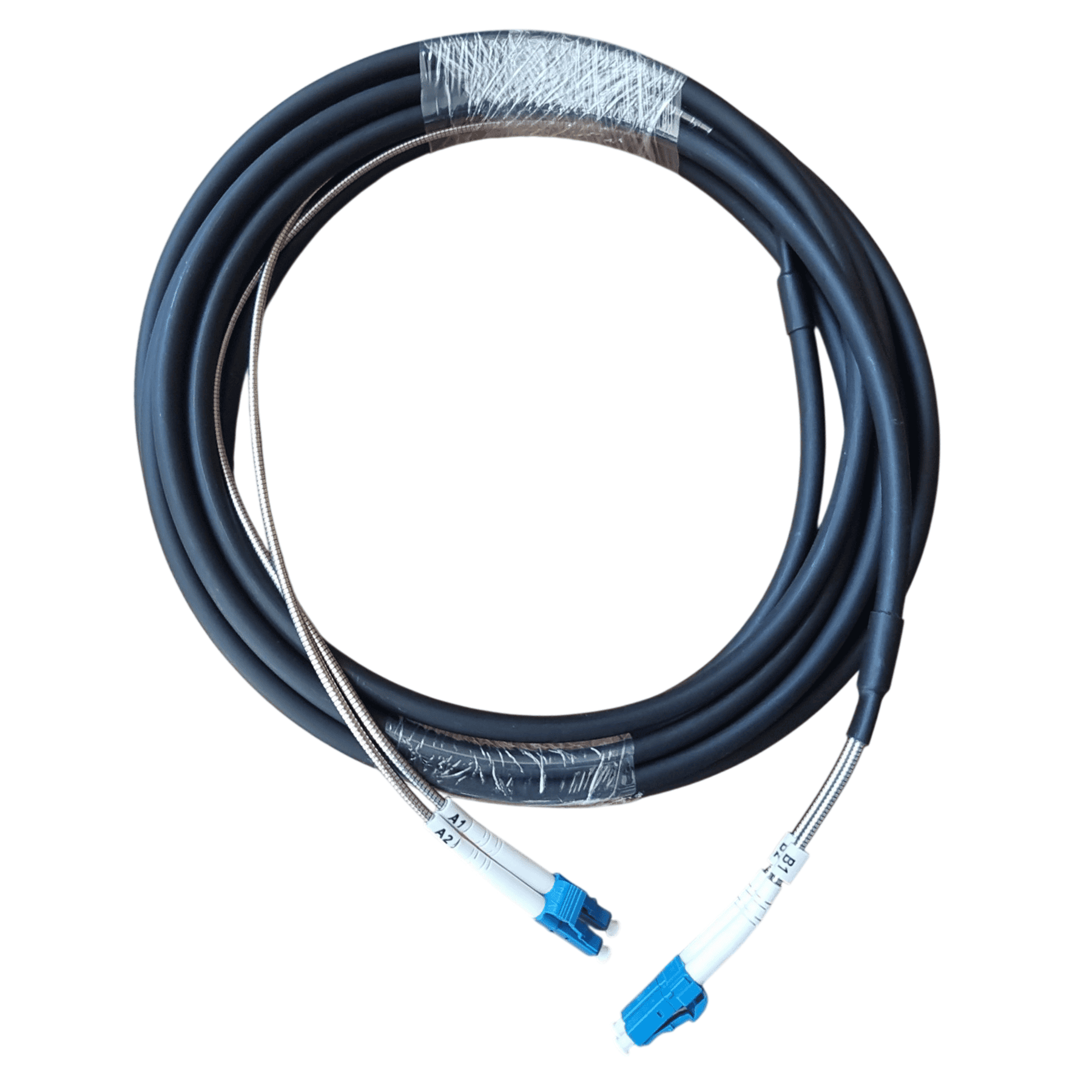

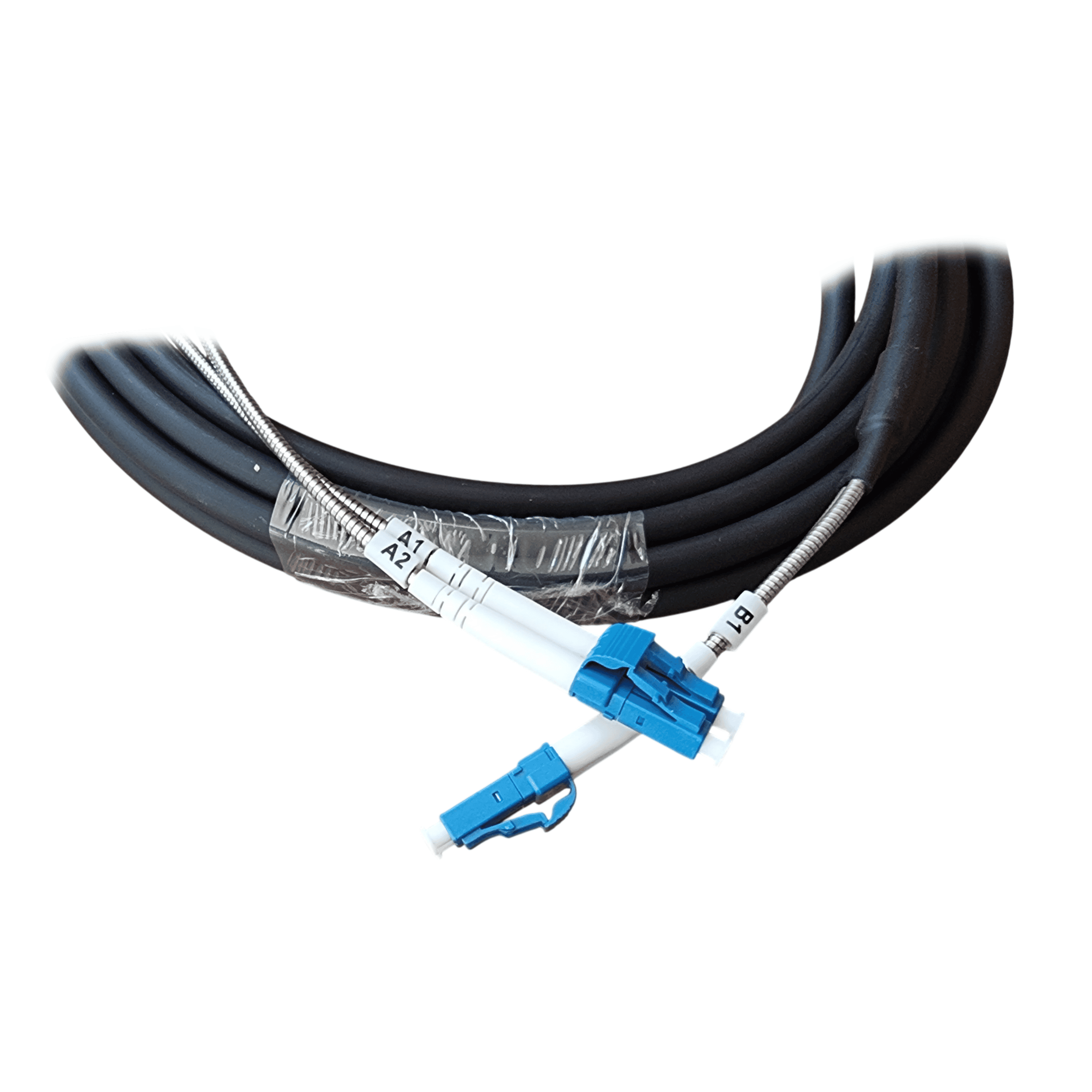

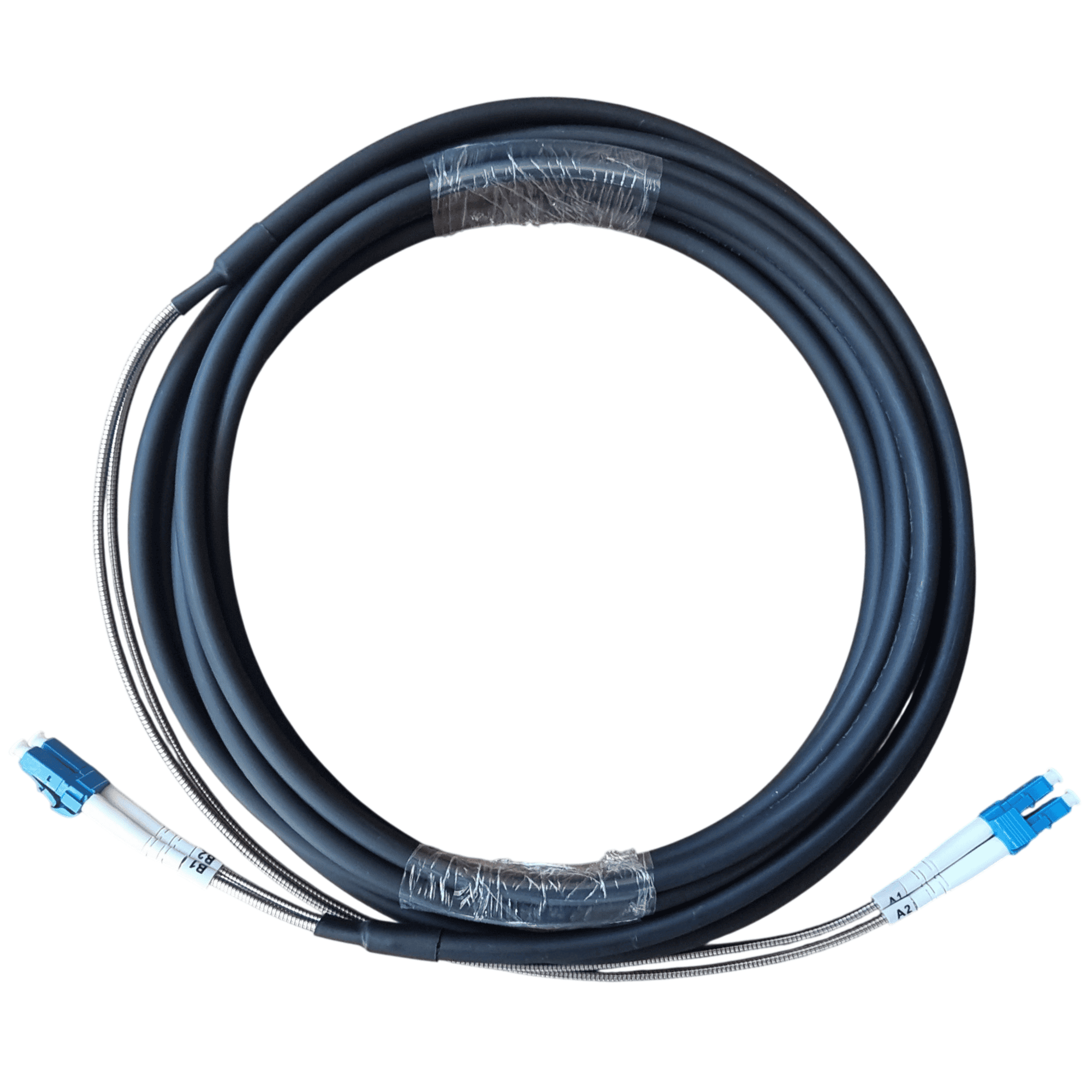

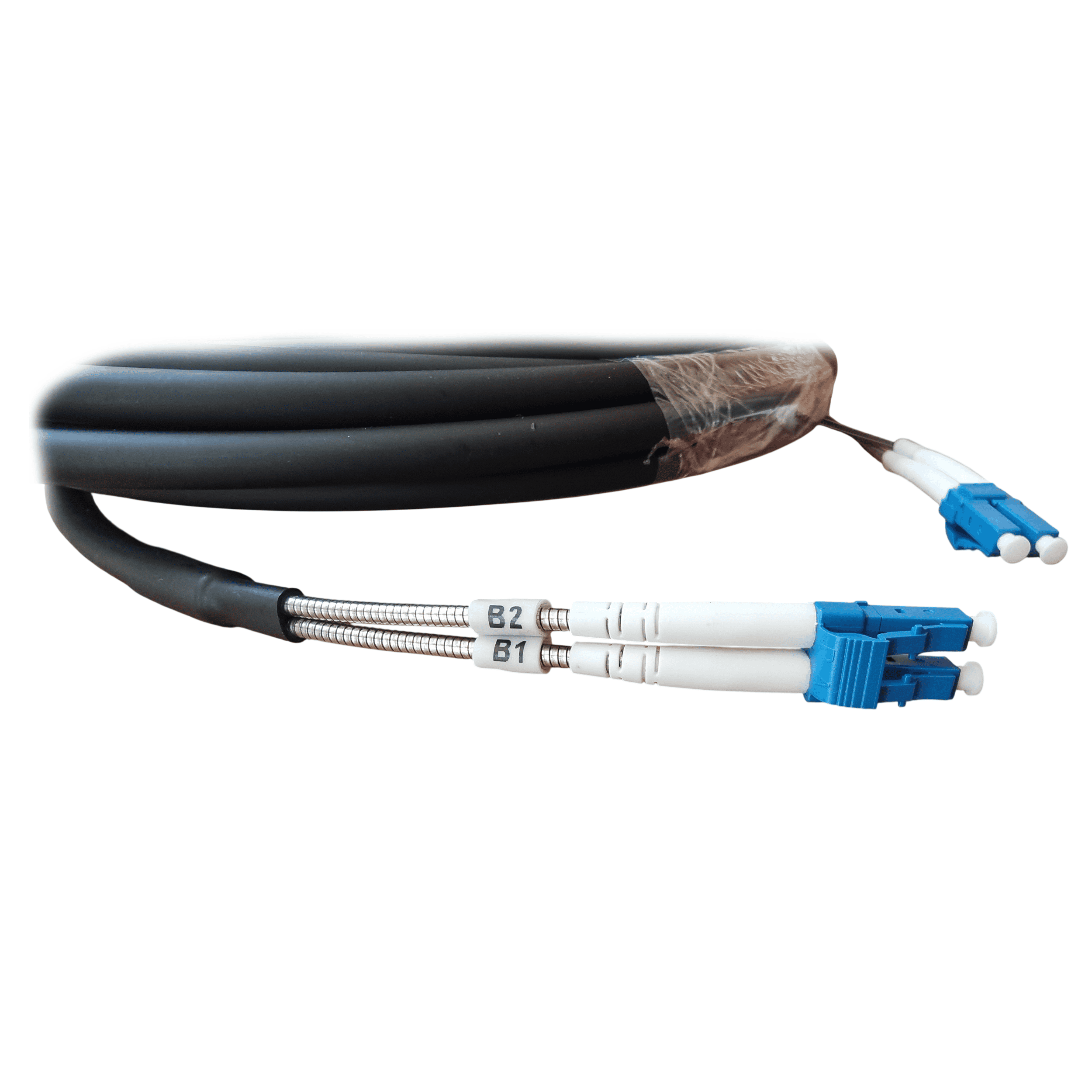

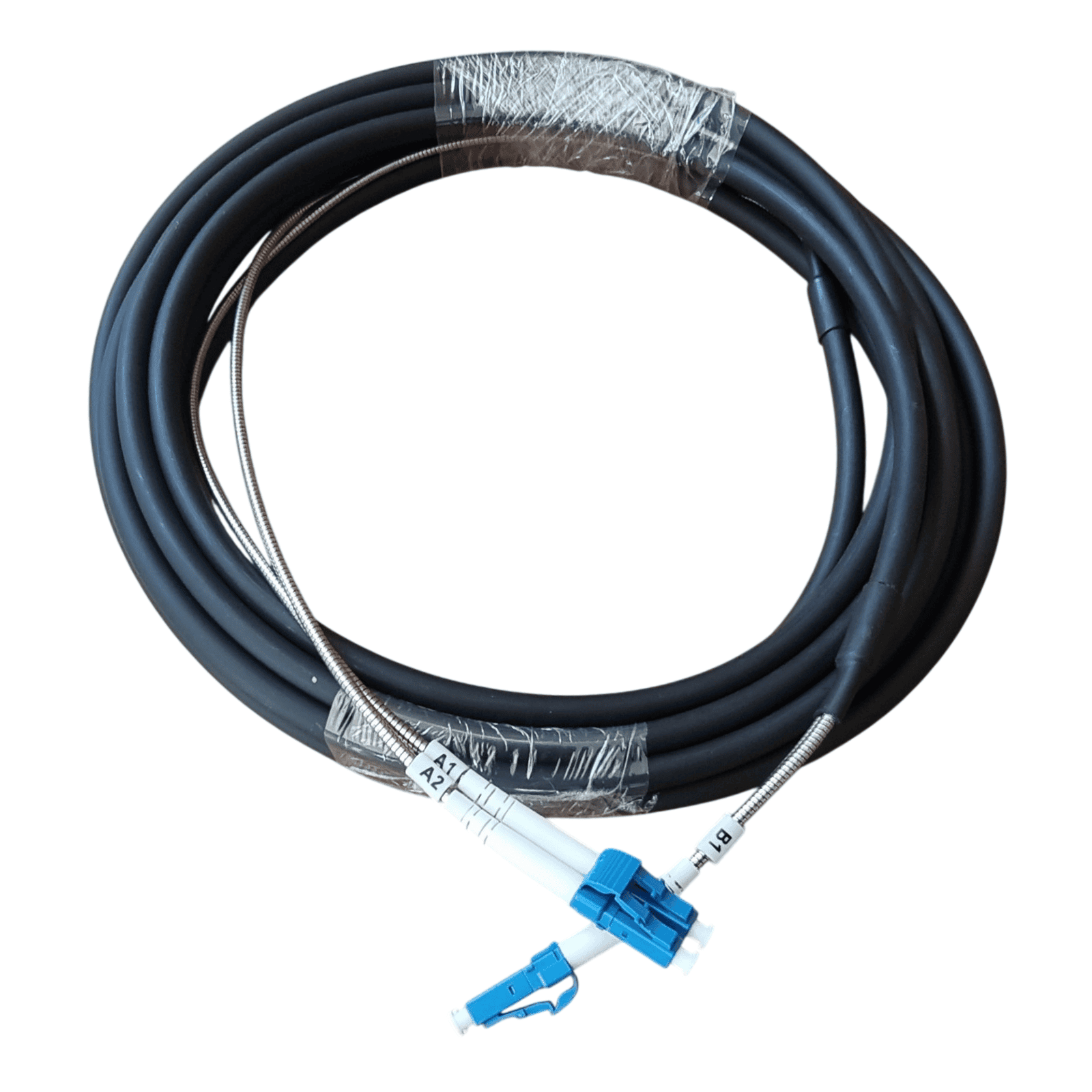

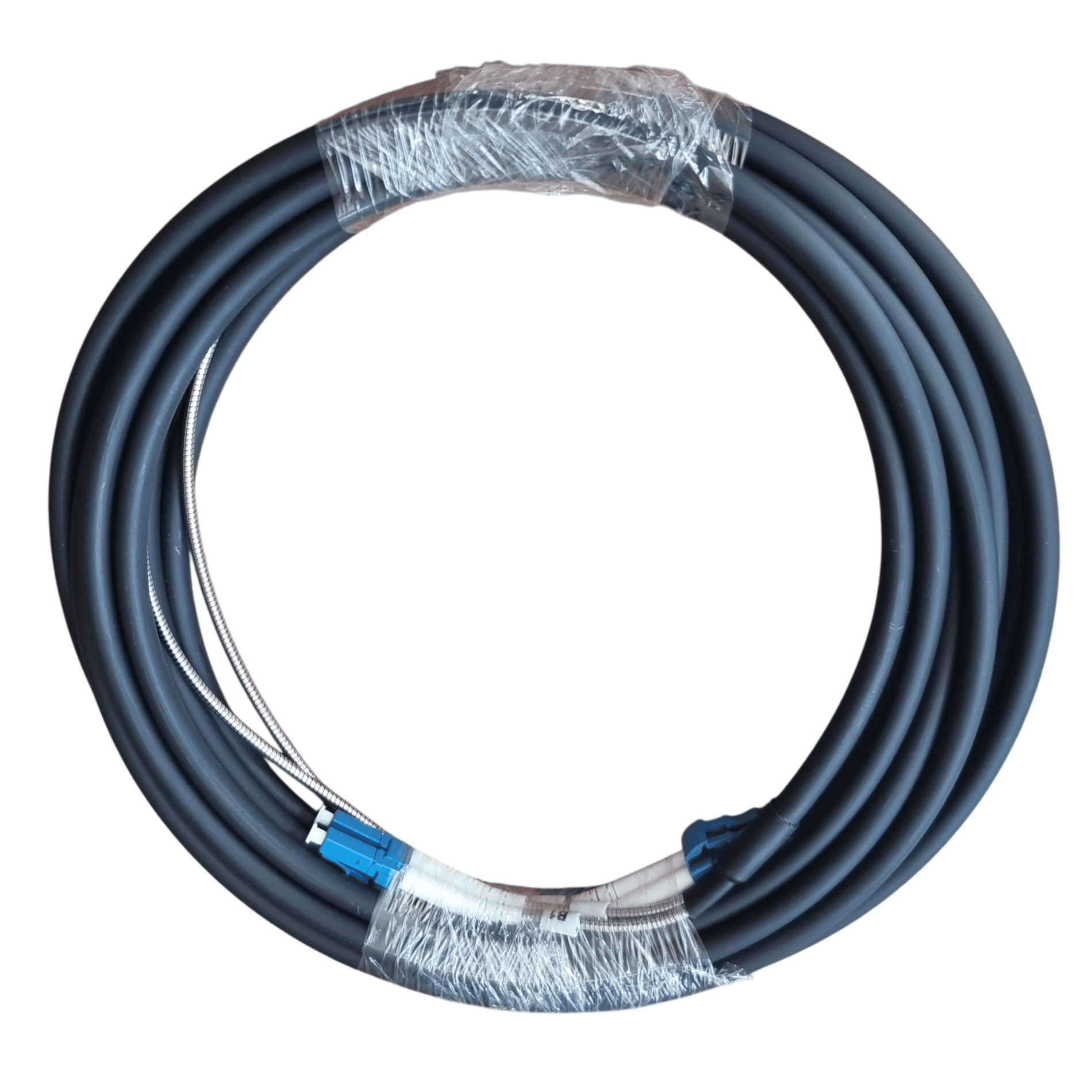

This ruggedised Single Mode 2-core 9/125 G.657A2 outdoor fibre optic drop cable features an LSZH outer jacket, Duplex LC/UPC (LC-LC) connectors, metallic armoured breakout branches, and a 7 mm outer diameter. Available in lengths of 5 m, 10 m, 20 m, 30 m, 40 m, 50 m, 60 m, 80 m, 100 m and 150 m. Fibre To The Antenna (FTTA) cables are widely used in telecommunications infrastructure, including base stations, BBUs, RRHs/RRUs, FTTP, FTTx and WiMAX deployments, aerospace, sensing systems, equipment diagnostics, and other high-performance fibre optic applications. Each cable assembly is individually tested and supplied with its own factory test report. Ideal for FTTA, FTTP and FTTx outdoor network installations requiring a durable, pre-terminated fibre optic connection.

Share

General
Length

5 m, 10 m, 20 m, 30 m, 40 m, 50 m, 60 m, 80 m, 100 m, 150 m

Subunits (Fibre Core Quantity)

2

Fibre Specification

9/125

Connectors

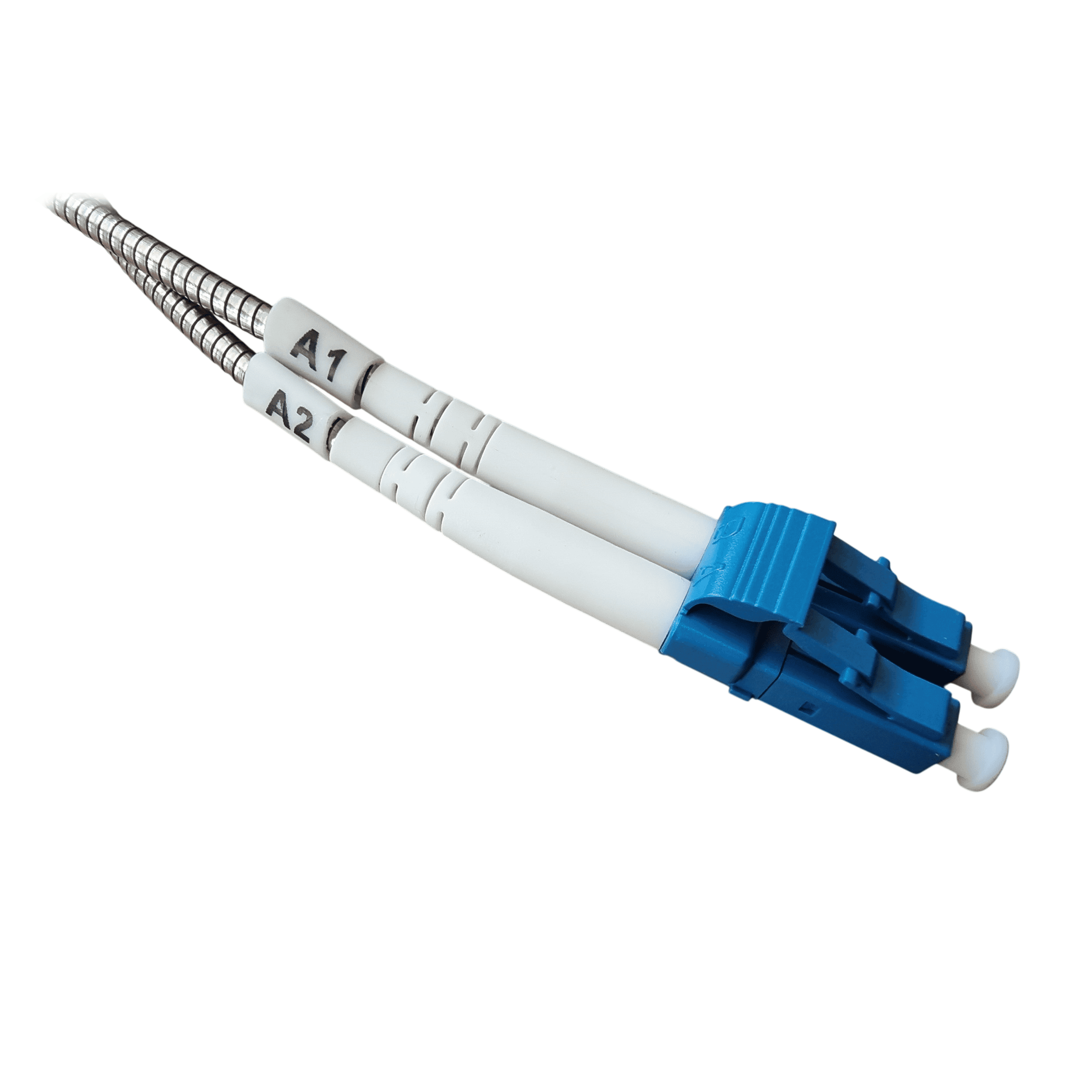

Duplex LC/UPC to LC/UPC (synonymous: LC/UPC-Duplex or DLC/UPC or LC/UPC-DX or LC-D/UPC)

Fibre Mode

Single-Mode (SM) G657A2, 9/125

Insertion Loss

≤ 0.3 dB

Return Loss

≥ 50db

Operating Wavelength

1300nm to 1660nm

Test Wavelength

130nm/1550nm

Durability

≤ 0.2 dB

Interchangeability

≤ 0.2 dB

Repeatability

≤ 0.1

Conformant Standards

IEC 60332-3C

Construction Materials
Fibre Core Type

G.657A2

Fibre Core Sheath

LSZH White (Low Smoke Zero Halogen)

Tight Buffer

Fibre Reinforced Polymer (FRP)

Subunit Sheath

LSZH Yellow (Low Smoke Zero Halogen)

Ruggedised (Reinforcement)

Aramid Fibre

Sheath

LSZH Black (Low Smoke Zero Halogen)

Armouring

Metallic Armoured Branches

Dimensions
Fibre Core Diameter

0.90±0.05 mm (900μm)

Tight Buffer Diameter

1.0±0.1mm

Subunit Sheath Diameter

2.0±0.1mm

Sheath Thickness

1.0 mm

Sheath Diameter

7.0±0.2mm

Breakout Branch Length

Side A: 30 mm, Side B: 340 mm

Mechanical
Min. Single Bending Radius

70 mm

Max. Tensile Force

Short term ≥ 500N, Long term ≥ 300N

Mass

± 45 kg/km

Environmental
Operating Temperature

-40°C to +85°C

Storage Temperature

-40°C to +85°C
