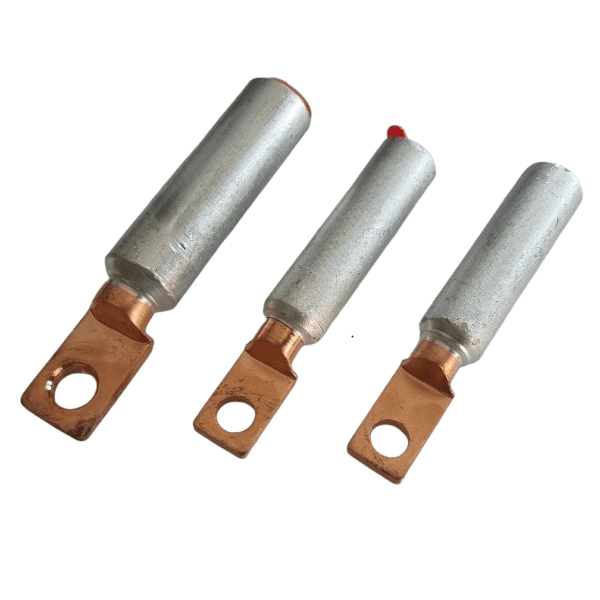

Bi-metallic Ring Lugs / Terminals, Aluminium – Copper – Assorted

Select lug variation to view pricing

Purpose made for the telecoms industry, fits on Remote Radio Units (RRUs). The bi-metallic ring crimp terminals or lugs consist of 99.9% or greater, high conductivity copper and 99.5% or greater, aluminium. The solid palm and prefilled jointing compound in each lug eliminates the ingress of moisture and provides good electrical properties. Terminals/lugs are friction welded. Priced per terminal/lug.

Share

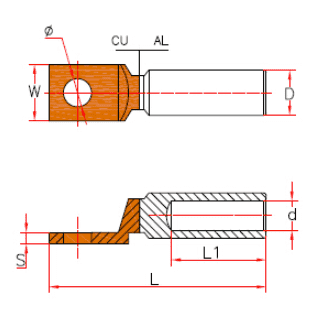

bi-metallic ring lugs sizing diagram
Lug Size φ±0.3 (mm) D±0.2 (mm) d±0.2 (mm) L±2.0 (mm) L1±2.0 (mm) W±0.2 (mm) S±0.2 (mm)

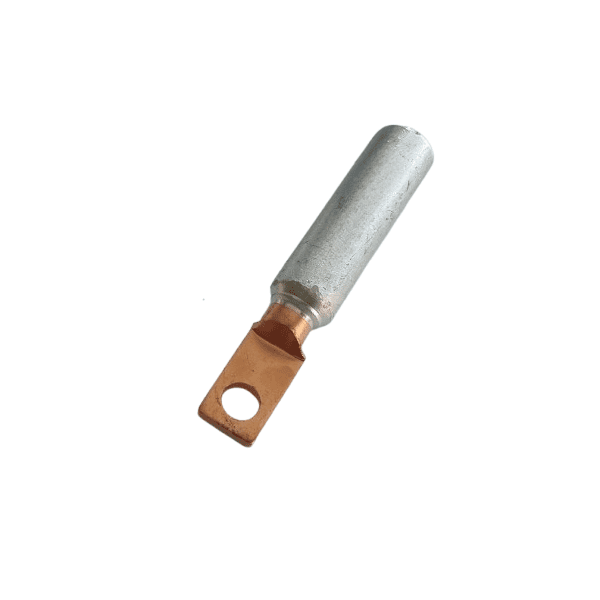

16 x 8mm 8.5 16.0 5.5 87.0 42.0 14.0 4.2

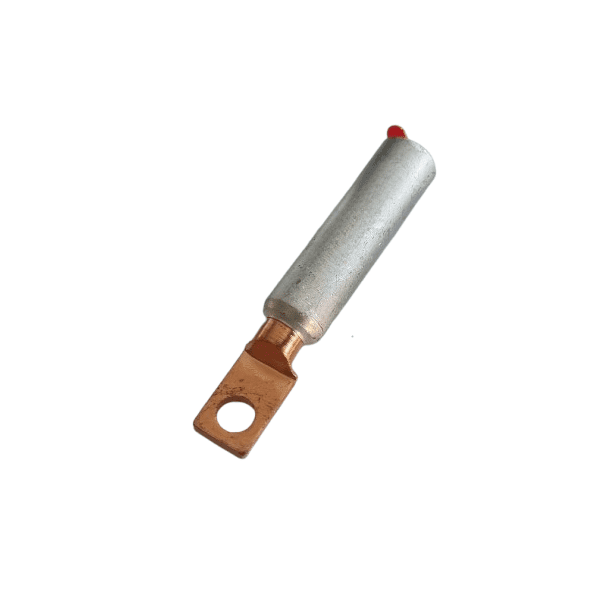

35 x 8mm 8.5 16.0 8.5 87.0 42.0 14.0 4.2

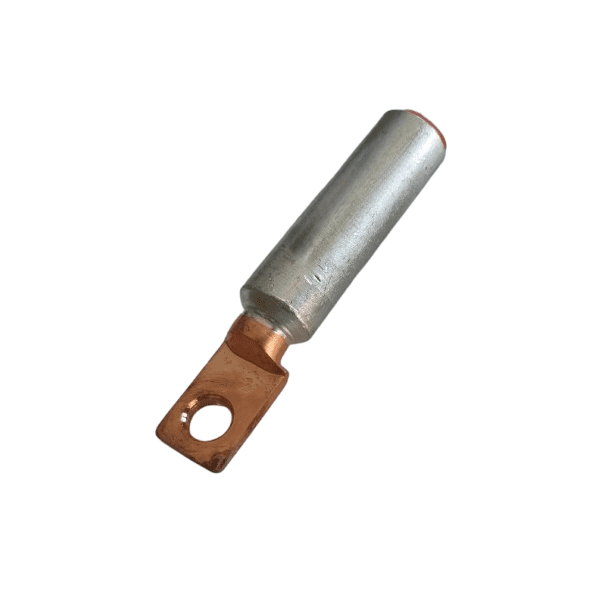

70 x 10mm 8.5 20.0 11.5 100.0 50.0 17.0 5.2
General
Material

Copper≥99.9% & Aluminium≥99.5%
