Directional Panel Outdoor Antenna

SKU: 0612-0011

R 356.50 incl.VAT

In stock

Warranty: 12 Months

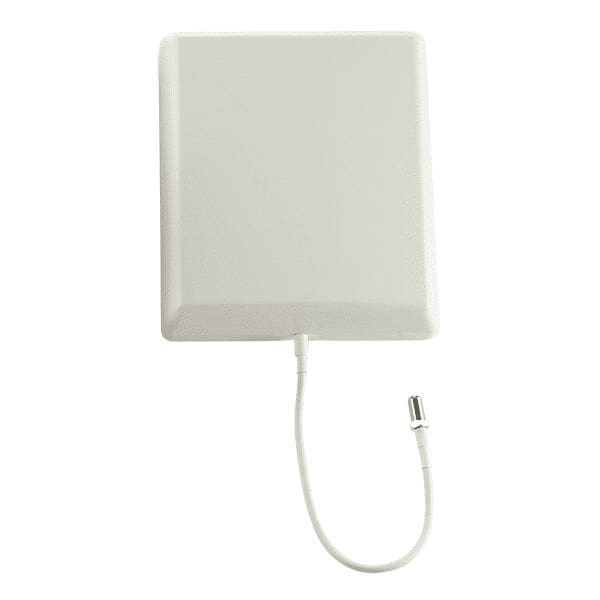

This wideband (698-3800 MHz), SISO, directional panel antenna is for outdoor use, usually as a donor antenna. With 6 dBi gain at 698-960 MHz, 7 dBi gain at 1710-2170 and 8 dBi gain at 2200-3800 MHz, its ideal for power-conservative applications. It interfaces with an N-type Female connector and includes a pole-mount bracket.

Share

MAIN FEATURES:

• Suitable for outdoor use

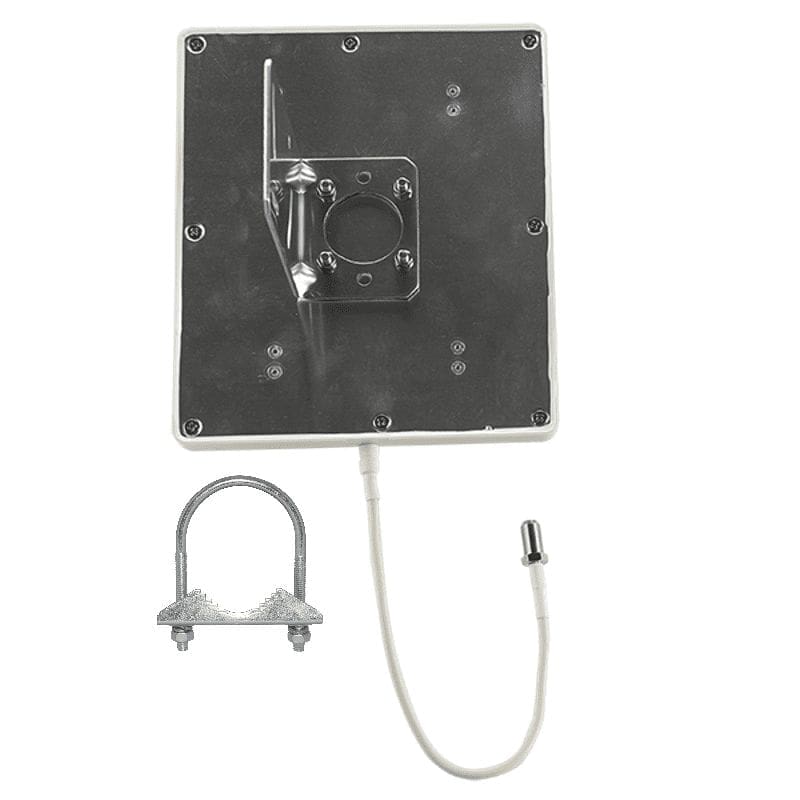

• Pole mount installation
• “Pigtail” cable with N-female connector
• Mounting kit included
Electrical
Frequency

1710 to 2170 MHz, 2200 to 2700 MHz, 3300 to 3800 MHz, 698 to 960 MHz

Gain

6 ± 0.5 dBi (698-960MHz), 7 ± 0.5 dBi (1710-2170MHz), 8 ± 0.5 dBi (2200-2700MHz), 8.5 ± 0.5 dBi (3300-3800MHz)

Horisontal 3dB Beamwidth

55° (3300-3800MHz), 60° (2200-2700MHz), 65° (1710-2170MHz), 80° (698-960MHz)

Vertical 3dB Beamwidth

30° (3300-3800MHz), 50° (2200-2700MHz), 60° (1710-2170MHz), 70° (698-960MHz)

Front-to-Back Ratio

≥ 10 dBi (1710-2170MHz), ≥ 10 dBi (3300-3800MHz), ≥ 15 dBi (2200-2700MHz), ≥ 8 dBi (698-960MHz)

VSWR

≤ 1.5

Impedance

50 Ω

Polarisation

Vertical

Maximum Power

50 W

Passive Intermodulation (PIM)

≤ -150 dBc @ 2×2 W

Lightning Protection

DC ground

Mechanical
Connector

N-Type Female

Operating Temperature

-40°C to +70°C

Storage Temperature

-55°C to +70°C

Relative Humidity

5% to 95%

Pigtail Length

260 mm

Radome Material

UV-Protected ABS

Colour

White

Rated Wind Velocity

210 km/h

Dimensions (mm)

207 x 177 x 50

Mass

± 0.4 kg

More
IP Rating

IP65
