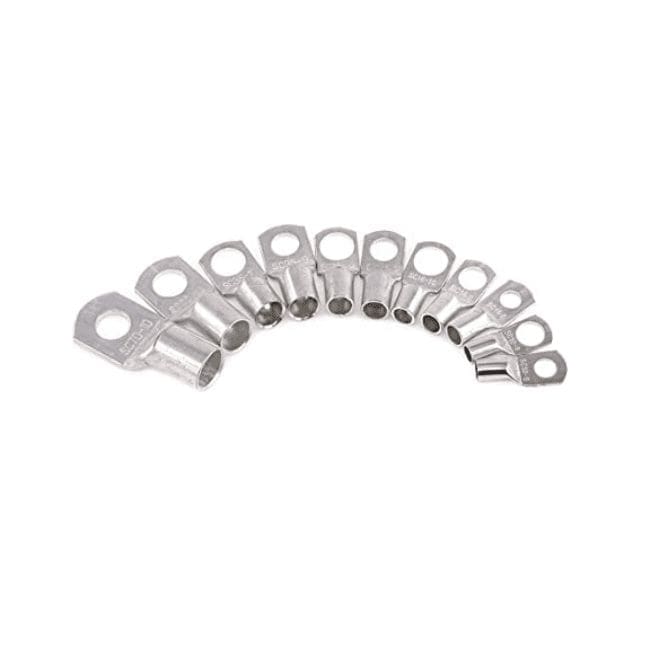

Ring Terminals/Lugs, Tinned Copper, Uninsulated – Assorted Sizes

Be the first to leave a review.

Select lug variation to view pricing and pack quantity

These tinned ring crimp terminals or lugs consist of 99.9%+ high conductivity annealed copper with good electrical properties.  They are rated up to 1000 V, conform to SABS IEC61238 and are capable of withstanding a continuous operating temperature of 155°C. The 1.5mm2 to 185mm2 lugs have a viewing window to check the conductor location (240mm2 and up have no window). Minimum order quantities. Priced per pack. Lug quantity per pack is indicated when making a size selection.

Share

uninsulated standard lug dimensions
Conductor (mm2) ID Size (mm) Stud (mm) Dimensions (mm)
A B D E
1.5 1.8 3 16 8 9 5
1.5 1.8 4 16 8 9 5
1.5 1.8 5 16 8 9 5
1.5 1.8 6 16 10 9 5
2.5 2.4 3 20 8 11 7
2.5 2.4 4 20 8 11 7
2.5 2.4 5 20 10 11 7
2.5 2.4 6 20 10 11 7
2.5 2.4 8 25 12 15 8
4 3.1 3 20 10 11 7
4 3.1 4 20 10 11 7
4 3.1 5 20 10 11 7
4 3.1 6 20 10 11 7
4 3.1 8 27 13 17 8
4 3.1 10 32 13 19 11
6 3.4 4 23 10 11 9
6 3.4 5 23 10 11 9
6 3.4 6 27 12 15 9
6 3.4 8 27 12 15 9
6 3.4 10 35 15 20 11
10 4.5 5 25 12 13 9
10 4.5 6 25 12 13 9
10 4.5 8 27 12 15 9
10 4.5 10 33 15 19 11
10 4.5 12 35 19 20 12
16 5.5 5 30 12 14 12
16 5.5 6 30 12 14 12
16 5.5 8 30 12 14 12
16 5.5 10 36 15 20 12
16 5.5 12 41 18 25 12
16 5.5 16 43 24 27 12
25 6.9 6 30 13 14 12
25 6.9 8 30 13 14 12
25 6.9 10 37 18 21 12
25 6.9 12 40 18 21 12
25 6.9 16 46 24 27 15
35 8.2 6 35 15 18 12
35 8.2 8 35 15 18 12
35 8.2 10 38 18 21 12
35 8.2 12 38 18 21 12
35 8.2 16 51 24 30 16
50 10 6 43 18 21 16
50 10 8 43 18 21 16
50 10 10 43 20 21 16
50 10 12 43 26 21 16
50 10 16 52 26 30 16
50 10 20 52 26 30 16
70 11.7 8 50 21 25 18
70 11.7 10 50 21 25 18
70 11.7 12 50 21 25 18
70 11.7 16 50 28 32 18
70 11.7 20 59 30 34 18
95 13.5 8 55 25 26 20
95 13.5 10 55 25 26 20
95 13.5 12 55 25 26 20
95 13.5 16 64 28 32 23
95 13.5 20 66 30 36 23
120 15.5 8 60 28 28 22
120 15.5 10 60 28 28 22
120 15.5 12 60 28 28 22
120 15.5 16 64 32 32 22
120 15.5 20 68 32 36 22
150 17 8 69 30 32 26
150 17 10 69 30 32 26
150 17 12 69 30 32 26
150 17 16 69 30 32 26
150 17 20 73 32 36 26
185 18.5 10 78 34 34 32
185 18.5 12 78 34 34 32
185 18.5 16 78 34 34 32
185 18.5 20 92 36 32 29
240 21.5 10 92 38 40 38
240 21.5 12 92 38 40 38
240 21.5 16 92 38 40 38
240 21.5 20 89 40 42 33
300 24.5 10 101 43 44 42
300 24.5 12 101 43 44 42
300 24.5 16 101 43 44 42
300 24.5 20 101 45 45 35
400 28.5 Blank 114 50 52 44
500 31.5 Blank 124 56 56 48
630 35 Blank 144 65 66 56
General
Total Conductivity

99.7% IACS

Total Resistivity

1.738 µΩ (Micro-Ohm) CM

Copper

99.95% pure

Oxygen Content

30 ppm Max

Tensile Strength

200 MPa

Ductile Rating

40%

Final Metal State

Fully Annealed

Electroplating Material

Tin: 99.9% pure; Other Metals: Lead & Antimony; Thickness: 4 Microns

Operating Temperature

-55°C to +155°C (due to Oxygen-Free Copper)

Conformant Standards

SANS lEC 1238-1: 1993
