connector SMA male RF195

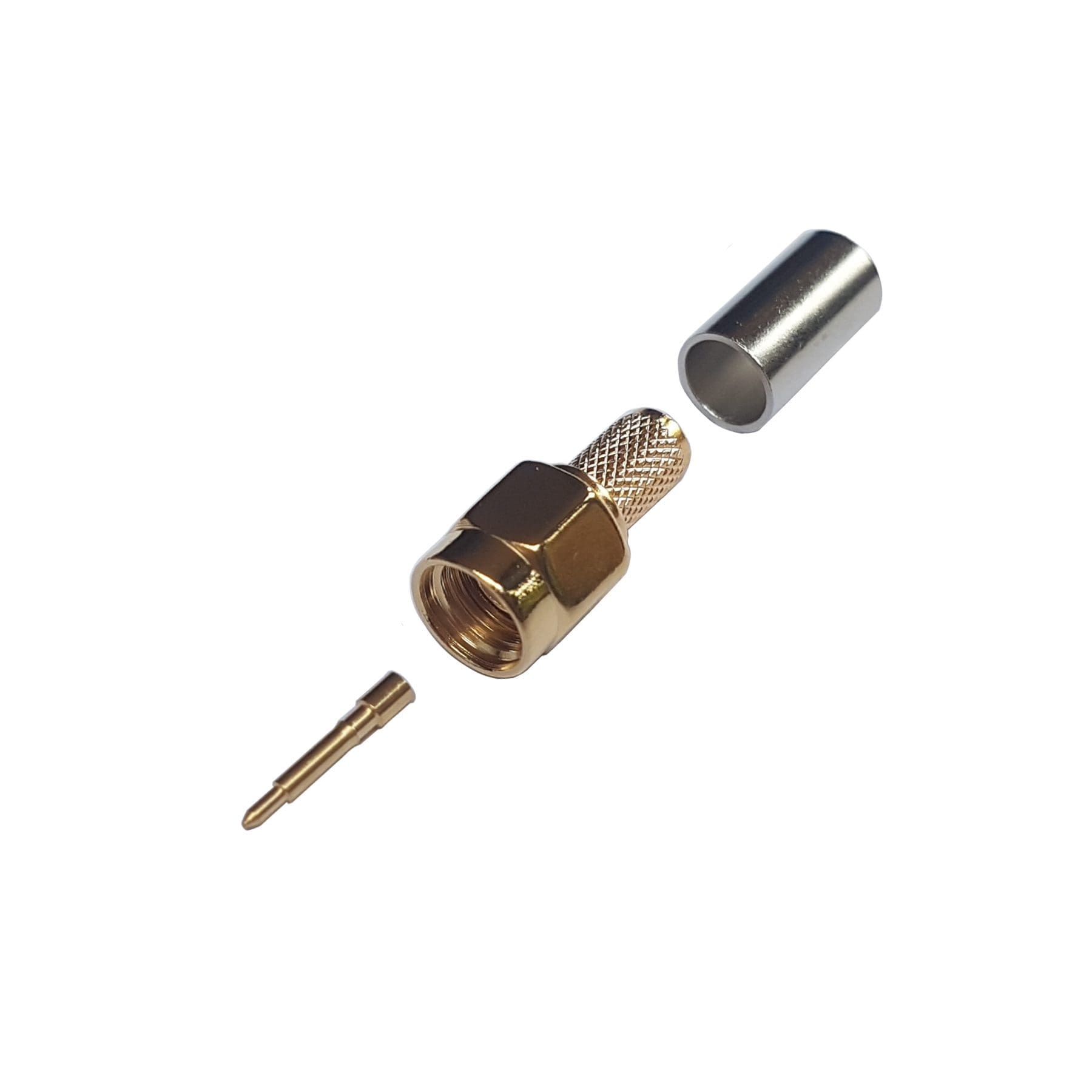

connector-SMA-male-RF195-2

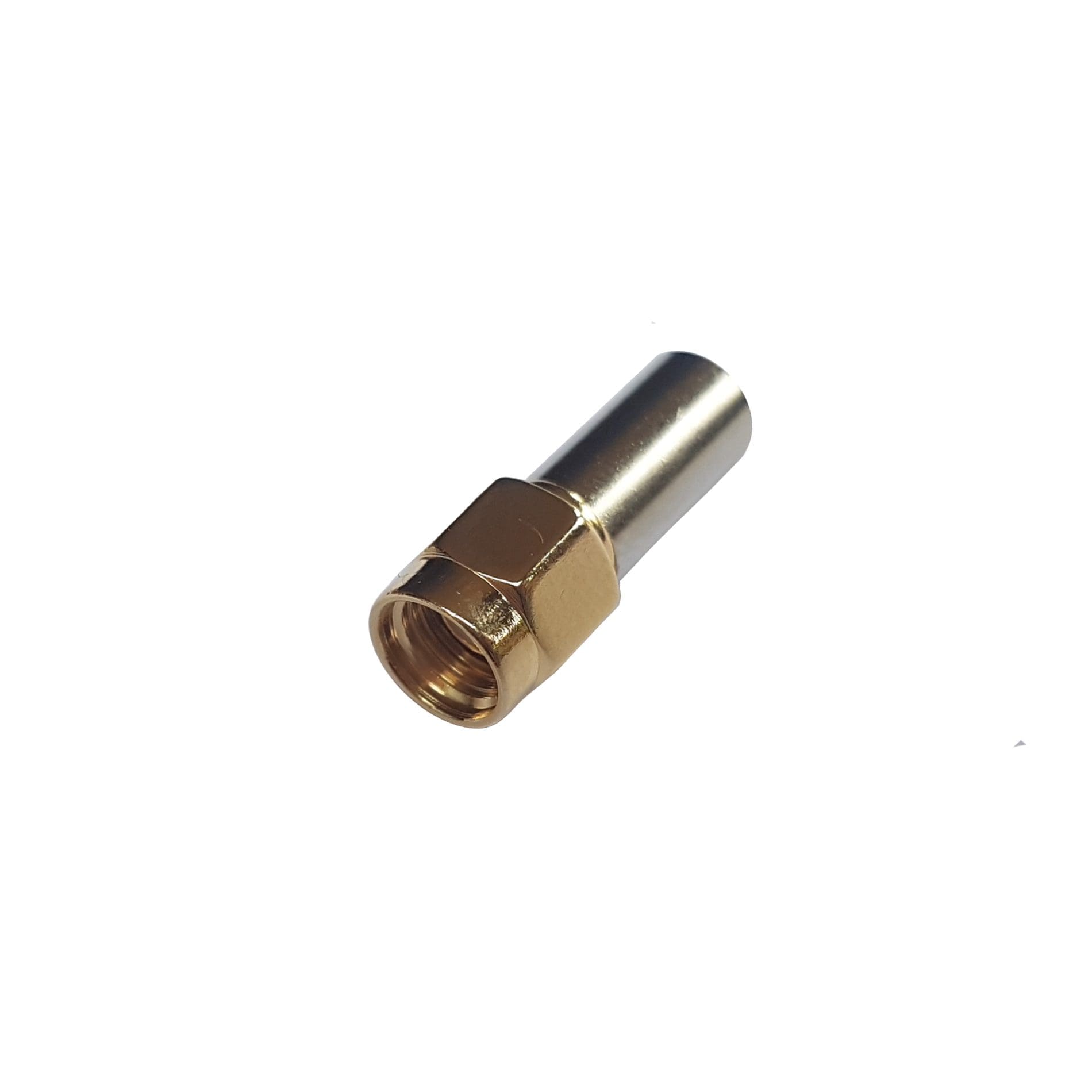

SMA Male Straight Connector, RF195, RG58, RG142

Be the first to leave a review.
SKU: 0341-1953

R 34.40 incl.VAT

In stock

These crimp connectors are manufactured to fit RF195 or LMR195, RG-142, RG-58 equivalents, at 50 Ω impedance. Suitable for use in many applications. Features include: Low insertion loss with a VSWR ≤ 1.2 over frequency range of 0-3 GHz.

Share

MAIN FEATURES:

• Fit for use with cable: RF195 or LMR195, RG-142, RG-58 equivalents.
• Good VSWR
• Wide frequency range
Electrical
Frequency

DC to 3 GHz

Impedance

50 Ω

VSWR

≤ 1.2

Dielectric Strength

≥ 335 V (RMS)

Center Contact Resistance

≤ 3 mΩ

Outer Contact Resistance

≤ 2.5 mΩ
Mechanical
Mating Cycles

≥ 500 cycles

Connector

SMA Male

Angle

Straight

Cable Use

LMR195 Cable, RF195 Cable, RG-142 Cable, RG-58 Cable
Material & Plating
Center Conductor

Brass with Gold plating

Fastener/Body

Brass with Gold plating

Dielectric

PTFE
Environmental
Operating Temperature

-65°C to +165°C

Environmental Standards

RoHS
