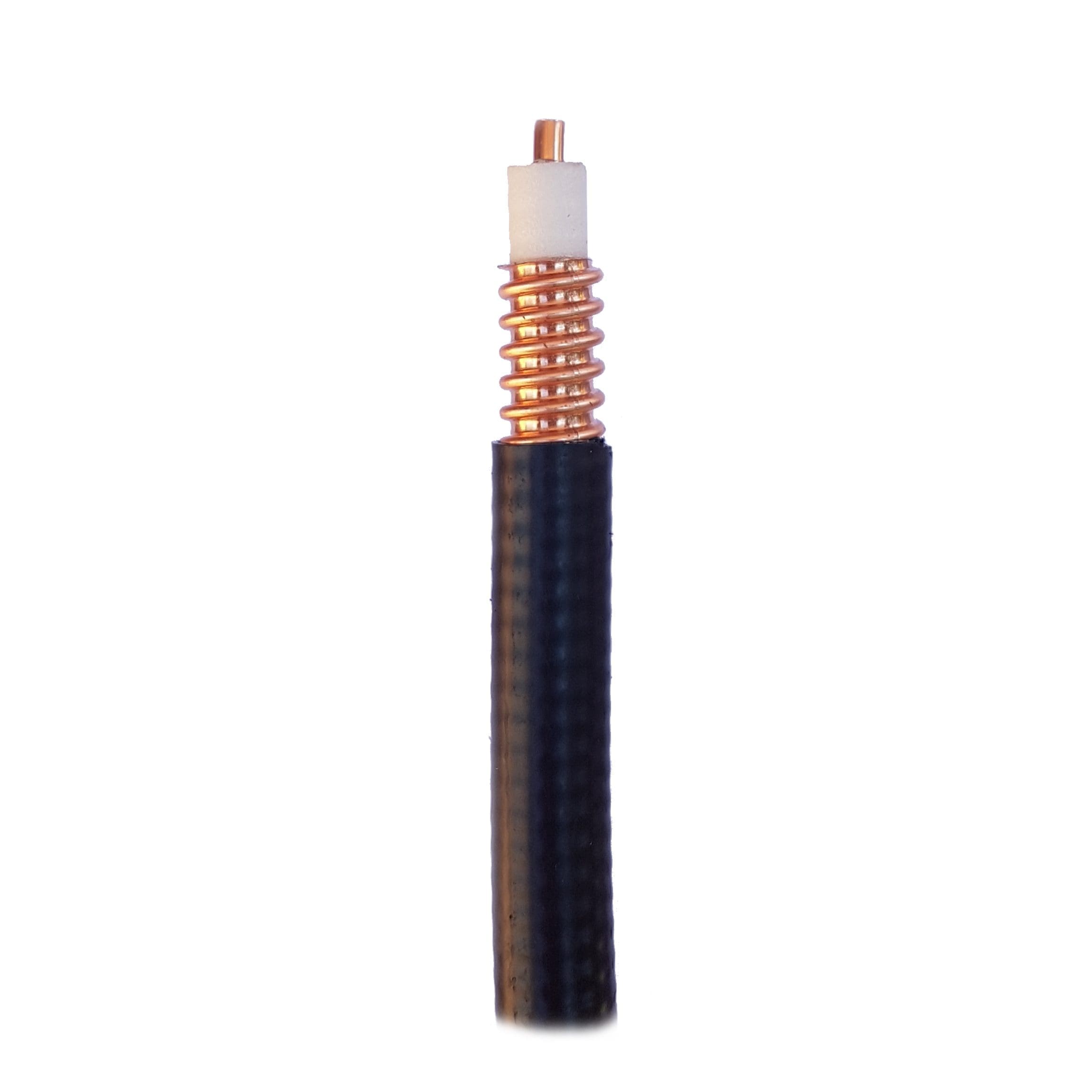

1/2″ Helical High Flex (Super Flex) Coaxial Cable

SKU: 0111-1101

R 49.60 p/m incl.VAT

In stock

This 1/2″ high flex coaxial cable is a low loss cable. It is also known as 1/2″ helical super flex coaxial cable. This 1/2 inch Radio frequency (RF) high flex coaxial cable at, 50 Ohm, is widely used in the mobile cellular network industry for various indoor and outdoor applications. It is substantially more flexible compared to normal 1/2″ low loss corrugated coaxial cable. With its UV-protected jacket and good performance, it is also ideal for outdoor applications including tower sites. Minimum order quantities apply (Quantity selector indicates MOQ). Priced per metre.

Share

General
Conformant Standards

IEC 62321-4:2013+A1:2017, IEC 62321-5:2013, IEC 62321-6:2015, IEC 62321-7-1:2015, IEC 62321-8:2017
Electrical
Impedance

50±1 Ω

Capacitance

80.0 pF/m

Velocity

83 %

VSWR

≤ 1.13 (1.7-2.2GHz), ≤ 1.15 (2.2-2.7GHz), ≤ 1.10 (0.8-1.0GHz)

Cutoff Frequency

12.5 GHz

Peak Power

19 kW

Peak Voltage

1.13 kV

Shielding Effectiveness

> 120 dB (10MHz & up)

Insulation Resistance

5 GΩ x km
Construction Materials
Inner Conductor

Copper-Clad Aluminium

Dielectric

Foam Polyethylene (PE)

Outer Conductor

Helical Copper Tube

Jacket

Black Polyethylene (PE)
Dimensions
Inner Conductor Diameter

3.60 mm

Dielectric Diameter

8.70 mm

Outer Conductor Diameter

12.00 mm

Diameter Over Jacket

13.30 mm
Mechanical
Min. Single Bending Radius

25 mm

Min. Repeated Bending Radius

50 mm

Min. Number of Bends

15

Max. Tensile Force

637.65 N
Environmental
Operating Temperature

-55°C to +85°C

Installation Temperature

-40°C to +60°C

Storage Temperature

-55°C to +85°C

Environmental Standards

RoHS
Frequency (MHz) Attenuation (dB/100m) Average Power (kW)
100 3.22 3.03
150 4.05 2.39
200 4.65 2.11
280 5.65 1.69
450 7.20 1.37
800 9.86 1.00
900 10.56 0.94
1000 11.15 0.88
1500 13.80 0.70
1800 15.55 0.63
2000 16.40 0.59
2200 17.35 0.56
2400 18.10 0.53
2500 18.50 0.52
3000 20.90 0.48
