adaptor n-type female to 4.3-10 male straight

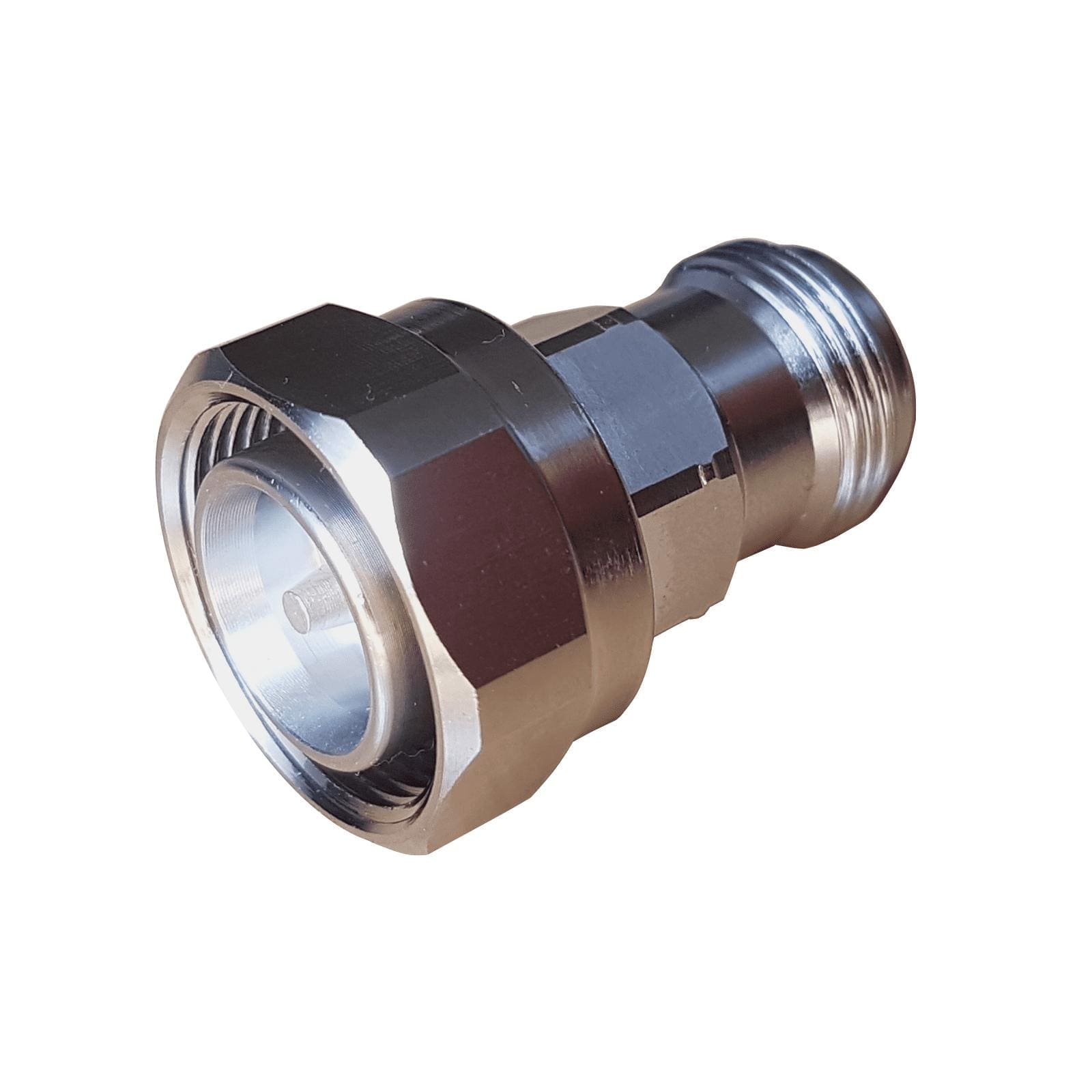

4.3-10 Male to N-Type Female Straight Adaptor

Be the first to leave a review.
SKU: 0200-0002

R 189.75 incl.VAT

In stock

This adaptor offers a low insertion loss with a good VSWR. It is suitable for use in many applications at its rated performance. Features include: An insertion loss below 0.10 dB and a VSWR below 1.1 over a wide frequency range (0-6 GHz).

Share

Electrical
Frequency

DC to 6 GHz

Impedance

50 Ω

VSWR

≤ 1.10 (0-3GHz)

Insertion Loss

≤ 0.1 dB
Mechanical
Mating Cycles

≥ 500 cycles

Connectors

4.3-10 Male to N-Type Female

Angle

Straight
Material & Plating
Outer Conductor

Brass with Nickel plating

Center Conductor

Bronze with Silver plating

Fastener/Body

Brass with Nickel plating

Dielectric

PTFE
Environmental
Operating Temperature

-40°C to +85°C

Environmental Standards

RoHS
