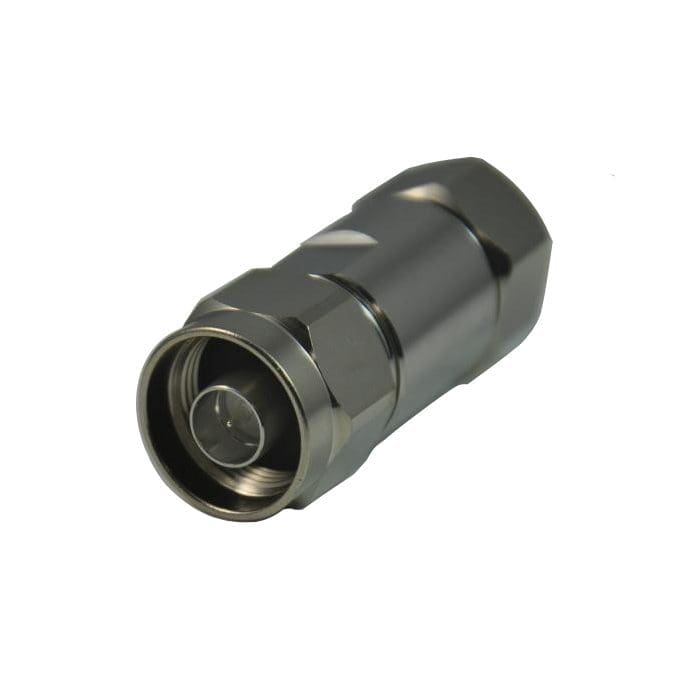

N-Type Male Straight Connector, 1/2″ HF

Be the first to leave a review.
SKU: 0311-0005

R 72.45 incl.VAT

In stock

The N-Type Male Straight, 1/2″ high flex or super flex connector is manufactured to fit high-flex (super flexible) 1/2″ coaxial cable, at 50 Ω impedance. This connector is suitable for use in many applications with good performance. The performance characteristics include: Low PIM (≤ -155 dBc) with a VSWR between 1.08 and 1.1 over a wide frequency range (0-11 GHz).

Share

Electrical
Frequency

DC to 11 GHz

Impedance

50 Ω

VSWR

≤ 1.08 (0-2.2GHz), ≤ 1.10 (2.2-3GHz)

Passive Intermodulation (PIM)

≤ -155 dBc

Insertion Loss

≤ 0.12 dB (@2.2 GHz)

Dielectric Strength

≥ 2.5 kV (RMS) @ sea level

Dielectric Resistance

≥ 5 GΩ

Center Contact Resistance

≤ 1.0 mΩ

Outer Contact Resistance

≤ 0.25 mΩ
Mechanical
Mating Cycles

≥ 500 cycles

Termination Cable Retention

≥ 500 N

Connector

N-Type Male

Angle

Straight

Cable Use

1/2″ High Flex Coaxial Cable
Material & Plating
Outer Conductor

Brass with CuSnZn3 plating

Center Conductor

Bronze with Silver plating

Fastener/Body

Brass with Nickel plating

Dielectric

PTFE
Environmental
Operating Temperature

-40°C to +85°C

Environmental Standards

RoHS
