connector SMA male straight RF400

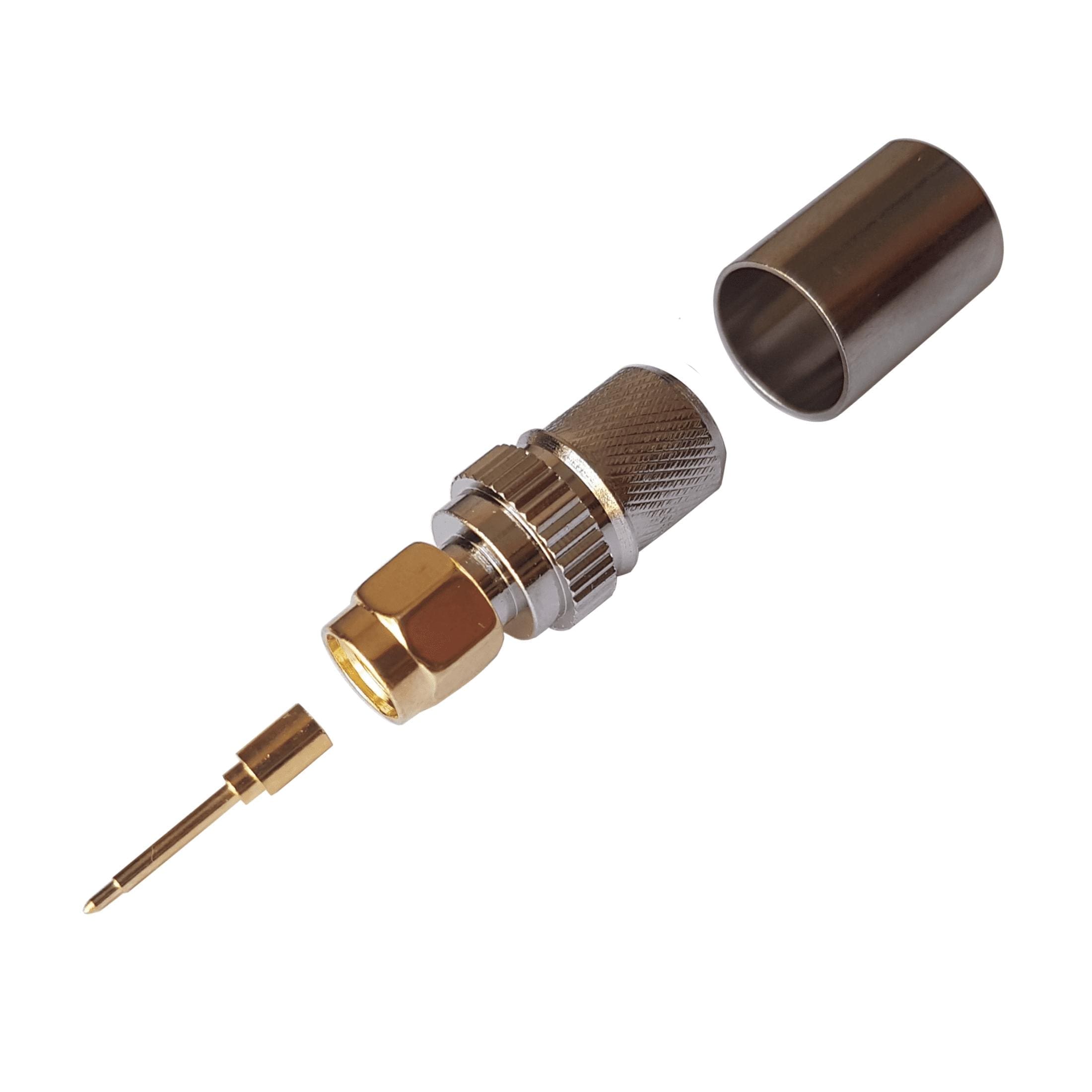

SMA Male Straight Connector, RF400, RG213, RG8, RG8A

Be the first to leave a review.
SKU: 0341-4003

R 46.00 incl.VAT

In stock

These crimp connectors are manufactured to fit RF400 or LMR400, RG-8, RG-8A, RG-213, Belden 9913, Belden 9914 and equivalent coaxial cable at 50 Ω impedance. These are suitable for use in many applications as it offers good performance with a VSWR ≤ 1.22 over a frequency range of 0 – 6 GHz.

Share

MAIN FEATURES:

• Fit for use with cable: RF400 or LMR400, RG-8, RG-8A, RG-213, Belden 9913, Belden 9914 & equivalents.
• Good VSWR
• Wide frequency range
Electrical
Frequency

DC to 6 GHz

Impedance

50 Ω

VSWR

≤ 1.22

Dielectric Strength

≥ 335 V (RMS)

Dielectric Resistance

≥ 5 GΩ

Center Contact Resistance

≤ 3 mΩ

Outer Contact Resistance

≤ 0.2 mΩ
Mechanical
Mating Cycles

≥ 500 cycles

Connector

SMA Male

Angle

Straight

Cable Use

Belden 9913 Cable, Belden 9914 Cable, LMR400 Cable, RF400 Cable, RG-213 Cable, RG-8 Cable, RG-8A Cable
Material & Plating
Outer Conductor

Brass with Ternary Alloy plating

Center Conductor

Brass with Gold plating

Fastener/Body

Brass with Ternary Alloy plating

Dielectric

PTFE

Gasket

Silicone
