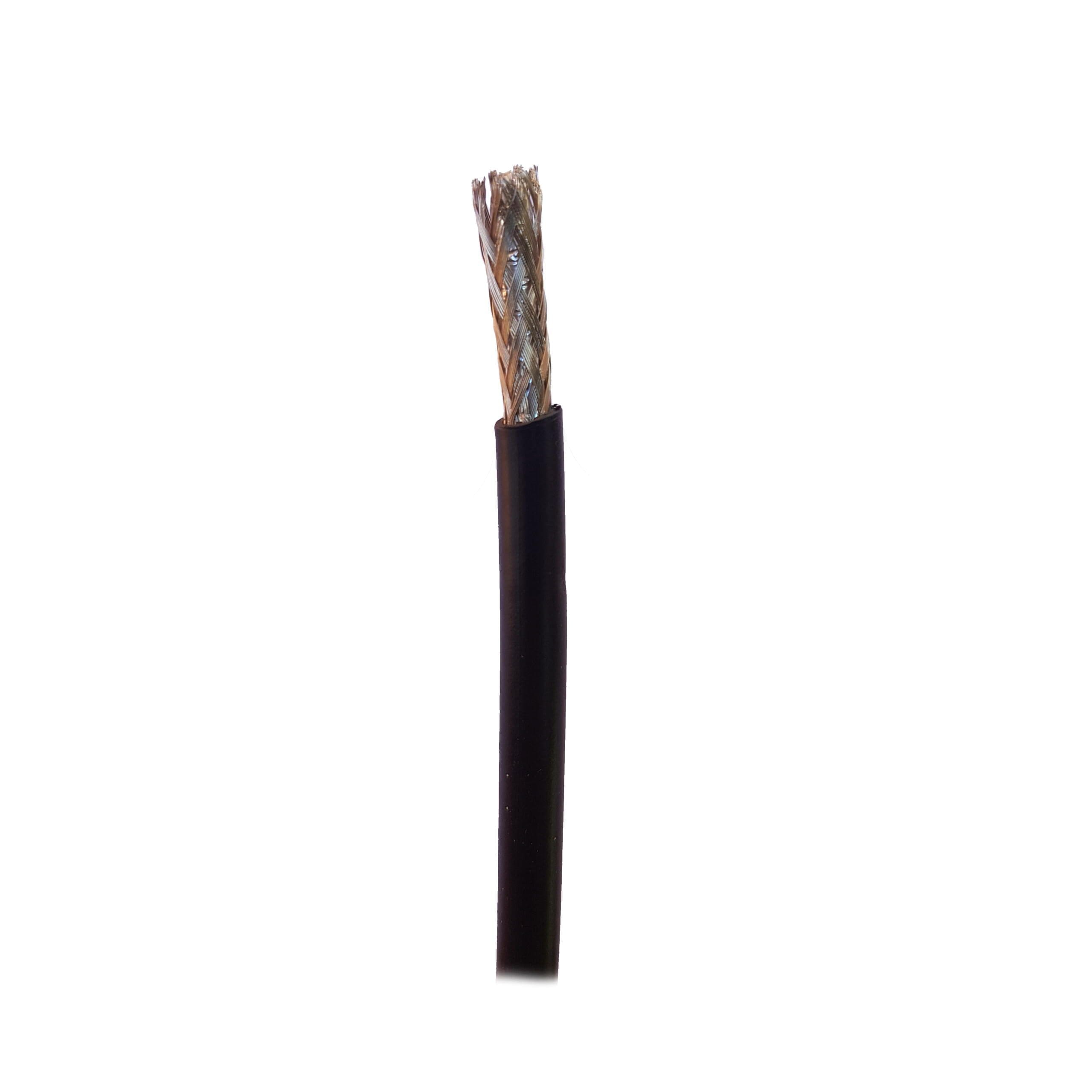

cable-RF-195-1

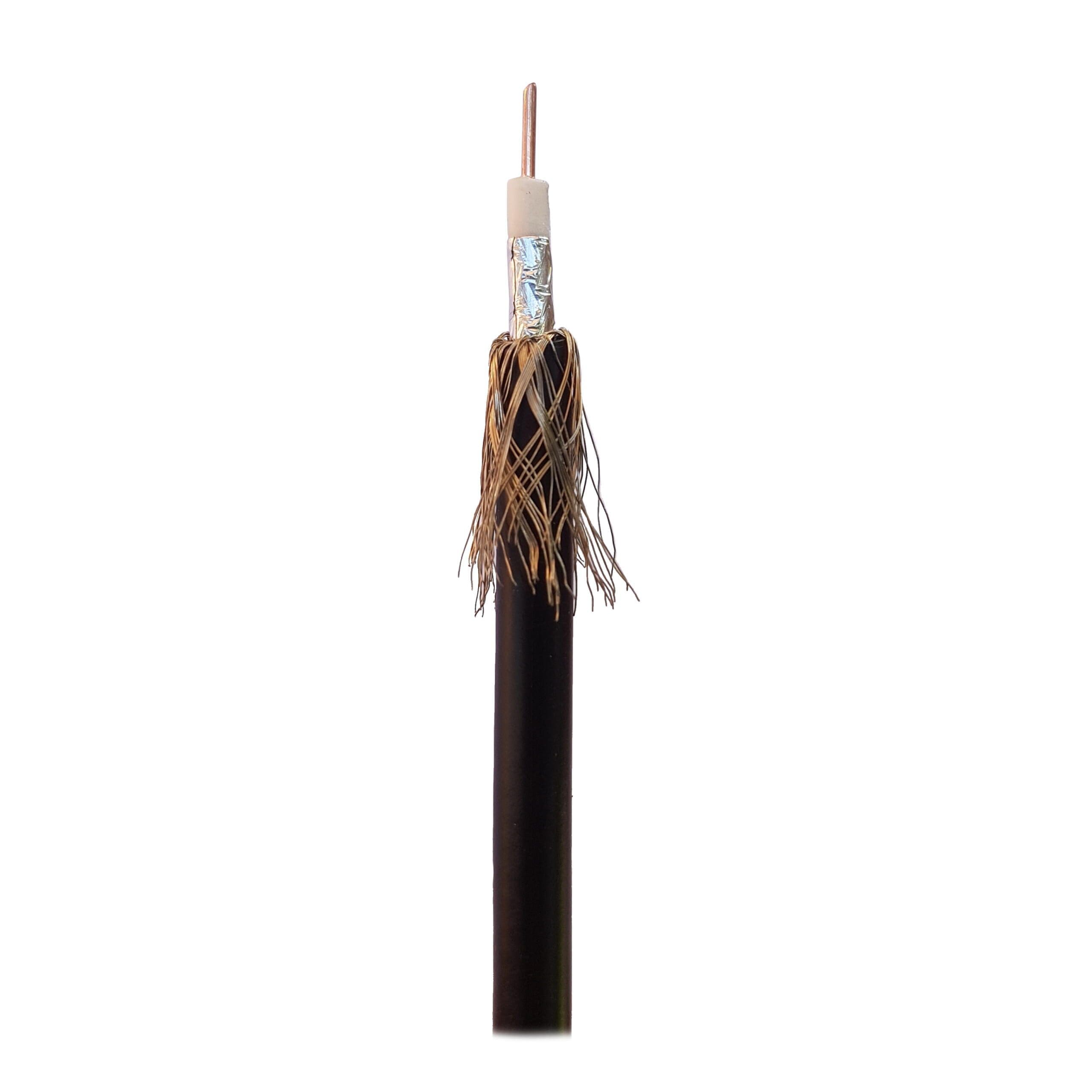

coaxial cable RF195

RF195 Coaxial Cable (LMR195 Equivalent)

Be the first to leave a review.
SKU: 0111-1951

R 15.24 p/m incl.VAT

In stock

This RF195 Radio frequency (RF) coaxial cable at 50 Ohm, is used as an alternative for LMR195. With its UV-protected jacket and good performance, it is ideal for various applications. Minimum order quantities apply. Priced per meter.

Share

Electrical
Impedance

50±3Ω

Capacitance

83.3 pF/m

Velocity

80 %

VSWR

≤ 1.22

Shielding Effectiveness

> 90 dB

Inner Conductor DC Resistance

24.9 Ω

Outer Conductor DC Resistance

16.1 Ω
Construction Materials
Inner Conductor

Bare Copper

Dielectric

Foam Polyethylene (PE)

Outer Conductor

Bonded Aluminium Foil & Tinned Copper Braid

Jacket

Black Polyethylene (PE)
Dimensions
Inner Conductor Diameter

0.94 mm

Dielectric Diameter

2.79 mm

Outer Conductor Diameter

3.53 mm

Diameter Over Jacket

4.95 mm
Environmental
Operating Temperature

-40°C to +80°C

Installation Temperature

-40°C to +80°C
Frequency (MHz) Attenuation (dB/100m) Average Power (kW)
30 6.5 0.89
50 8.4 0.68
150 14.6 0.39
220 17.7 0.32
450 25.5 0.22
900 36.5 0.16
1500 47.7 0.12
1800 52.5 0.11
2000 55.4 0.10
2500 62.4 0.09
5800 98.1 0.06
