connector 7/16 DIN male straight 7/8 inch Low Loss Coaxial Cable

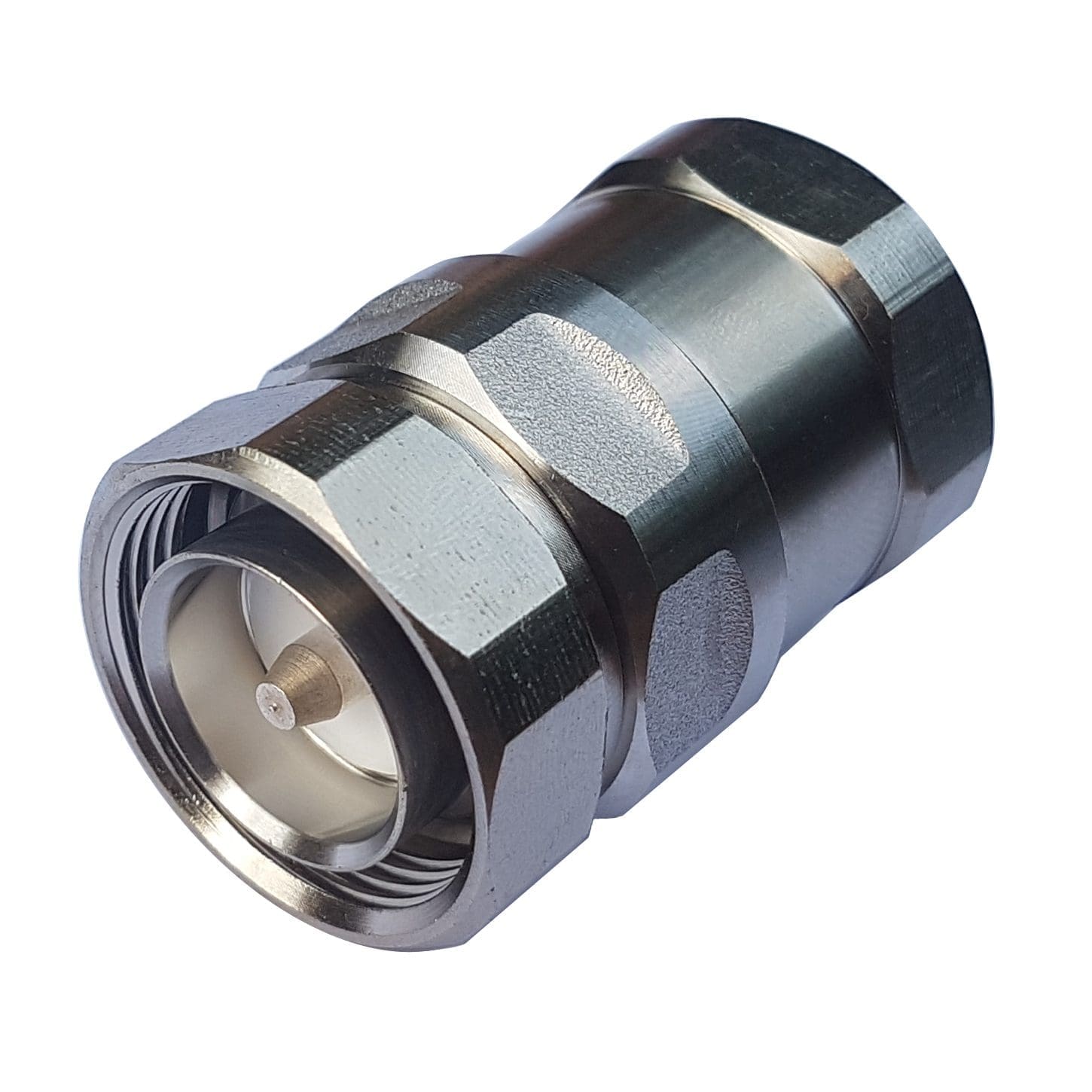

7/16 DIN Male Straight Connector, 7/8″ LL

Be the first to leave a review.
SKU: 0351-0400

R 188.34 incl.VAT

In stock

These 7/16 DIN Male Straight 7/8″ low loss connectors are manufactured to fit corrugated 7/8″ low loss coaxial cable, at 50 Ω impedance. The connector features include: Low insertion (≤ 0.08 dB) loss with a VSWR at and below 1.10 over a frequency range of 0-3 GHz. These are suitable for use in many applications with reliable performance.

Share

Electrical
Frequency

DC to 7.5 GHz

Impedance

50 Ω

VSWR

≤ 1.10 (0-3GHz)

Insertion Loss

≤ 0.08 dB (@2.2 GHz)

Dielectric Strength

≥ 4.0 kV (RMS) @ sea level

Dielectric Resistance

≥ 10 GΩ

Center Contact Resistance

≤ 0.4 mΩ

Outer Contact Resistance

≤ 1.0 mΩ
Mechanical
Mating Cycles

≥ 500 cycles

Termination Cable Retention

≥ 720 N

Connector

7/16 DIN Male

Angle

Straight

Cable Use

7/8" Low Loss Coaxial Cable
Material & Plating
Outer Conductor

Brass with CuSnZn3 plating

Center Conductor

Bronze with Silver plating

Fastener/Body

Brass with Nickel plating

Dielectric

PTFE
Environmental
Operating Temperature

-40°C to +85°C

Environmental Standards

RoHS
