connector 4_3-10 female 1_2-inch HF

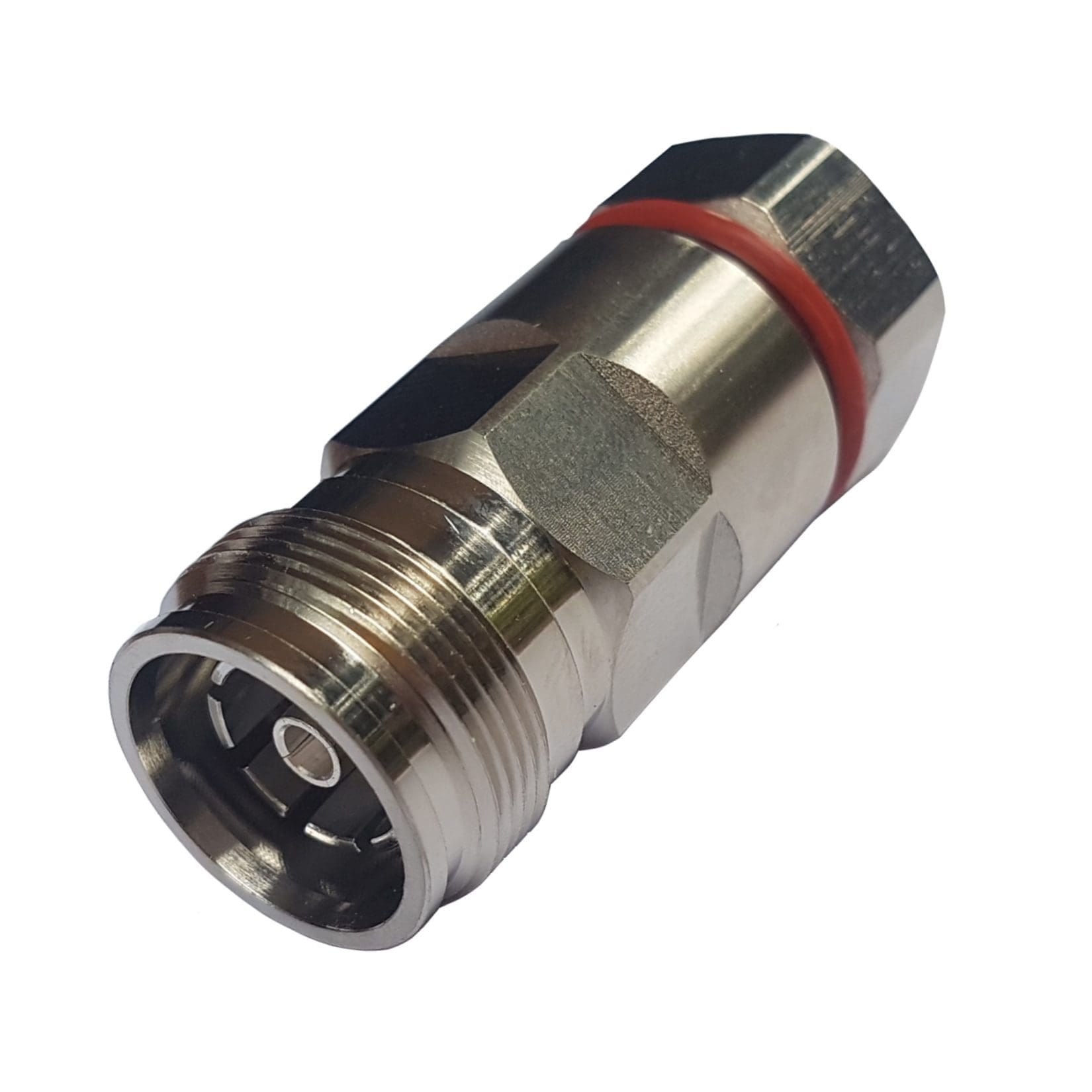

4.3-10 Female Straight Connector, 1/2″ HF

Be the first to leave a review.
SKU: 0351-0421

R 110.40 incl.VAT

In stock

The 4.3-10 Female Straight, 1/2″ high flex or super flex connector is manufactured to fit high-flex (super flexible) 1/2″ coaxial cable, at 50 Ω impedance. This connector is suitable for use in many applications with good performance. Features include: Low insertion loss (≤ 0.05 dB) with a VSWR between 1.10 and 1.15 over a frequency range of 0-3 GHz.



Share

Electrical
Frequency

DC to 7.5 GHz

Impedance

50 Ω

VSWR

≤ 1.10 (0-2.2GHz), ≤ 1.15 (2.2-3GHz)

Passive Intermodulation (PIM)

≤ -160 dBc

Insertion Loss

≤ 0.05 dB (@2.2 GHz)

Dielectric Strength

≥ 4.0 kV (RMS) @ sea level

Dielectric Resistance

≥ 10 GΩ

Center Contact Resistance

≤ 0.5 mΩ

Outer Contact Resistance

≤ 0.2 mΩ
Mechanical
Mating Cycles

≥ 500 cycles

Termination Cable Retention

≥ 500 N

Connector

4.3-10 Female

Angle

Straight

Cable Use

1/2″ High Flex Coaxial Cable
Material & Plating
Outer Conductor

Brass with CuSnZn3 plating

Center Conductor

Bronze with Silver plating

Fastener/Body

Brass with Nickel plating

Dielectric

PTFE
Environmental
Operating Temperature

-40°C to +85°C

Environmental Standards

RoHS
