Signal Booster/Repeater – Quad Band 2G, 3G, 4G & 5G

Categories

repeater cellphone signal booster quad band 800 900 1800 2100 MHz 2G 3G 4G 5G

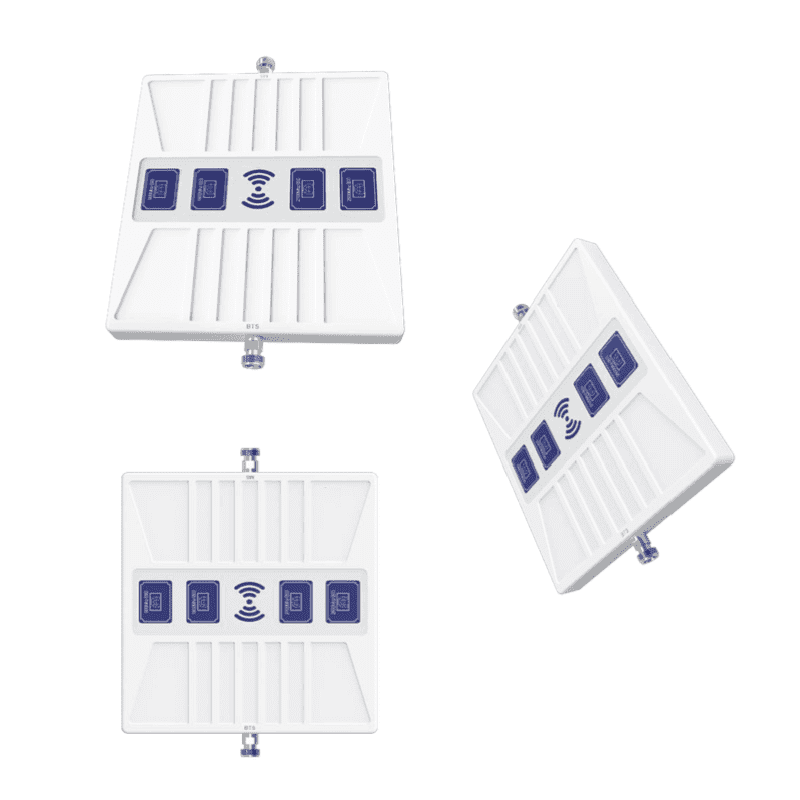

repeater cellphone signal booster quad band 800 900 1800 2100 MHz 2G 3G 4G 5G front view

Signal Booster/Repeater – Quad Band 2G, 3G, 4G & 5G

Be the first to leave a review.
SKU: 0000-0010-QB

R 9 775.00 incl.VAT

Warranty: 12 Months

ICASA approved cellular voice and data repeater / signal booster, with high 70 dB gain. Ideal for use in areas where cellphone signal reception is poor or out of reach. The quad band 800, 900, 1800 and 2100 MHz capability (Band 1,3,8,20) boosts all relevant technologies the network provider has available within these bands in your area (i.e. 2G, 3G, 4G & 5G – GSM900, UMTS900, LTE900, LTE1800, NR1800 etc.) It is non network-locked and therefore usable with MTN (FDD), Vodacom (FDD) and Cell C (FDD) (not suitable for use with Telkom – TDD). No monthly fees, 30-day Money Back Guarantee.

Share

Be the first to leave a review.

R 9 775.00 incl.VAT

Warranty: 12 Months

ICASA approved cellular voice and data repeater / signal booster, with high 70 dB gain. Ideal for use in areas where cellphone signal reception is poor or out of reach. The quad band 800, 900, 1800 and 2100 MHz capability (Band 1,3,8,20) boosts all relevant technologies the network provider has available within these bands in your area (i.e. 2G, 3G, 4G & 5G – GSM900, UMTS900, LTE900, LTE1800, NR1800 etc.) It is non network-locked and therefore usable with MTN (FDD), Vodacom (FDD) and Cell C (FDD) (not suitable for use with Telkom – TDD). No monthly fees, 30-day Money Back Guarantee.

Share

MAIN FEATURES:

• No monthly fees or subscriptions – once off purchase.
• Enhance your cellphone signal and extend your coverage.
• Improves call quality and data transfer speeds.
• No more dropped calls – improved call clarity.
• 30-day money back guarantee – 12 Month Product Warranty.
• Small in size and slim design with white housing.
• ICASA approved.

TECHNICALITIES:

• Compatible Technologies include GSM, DCS, WCDMA, LTE & New Radio (NR) – 2G, 3G, 4G & 5G.
• Quad band 800, 900, 1800 & 2100 MHz capability, boosts all relevant technologies your network provider has available in your area within these bands (Band 1, 3, 8 & 20 – i.e. 2G, 3G, 4G & 5G – GSM900, UMTS900, LTE900, LTE1800, NR1800 etc.)
• High 70 dB downlink gain.
• Maximum 21 dBm downlink output power.
• Energy efficient with a maximum electricity usage of 10W.
• Works with all FDD networks (MTN, Vodacom, Cell C, FNB Connect, Capitec Connect, Shoprite K’nect Mobile, Standard Bank Mobile).
• Does NOT work with TDD networks (Telkom Voice).
• Note that the unit’s performance depends on the availability and quality of the incoming signal. (Cell-tower and area).
• Optional outdoor donor antenna earthing accessories available:
1 x Earth Spike, M12 x 1.2m
1 x Lightning Arrestor N-type Female-Female
10m x Earth Cable, Green/Yellow, 6mm
• Optional outdoor antenna mast, bracket and accessories available:
1 x Aluminium Pole, 3m x 38mm x 1.2mm
1 x Tripod Bracket, 450mm
2 x U-Bolts, M8-1.25 x 45
3 x Coach Screws & Wall-Plugs, M8 x 60mm

• For a professional installation, site survey or if you require a custom kit and installation, please contact us or submit an enquiry on the enquiry tab on this page.

Electrical Specifications
Frequency

1800 MHz (UL: 1710-1785MHz, DL: 1805-1880MHz), 2100 MHz (UL: 1920-1980MHz, DL: 2110-2170MHz), 800 MHz (UL: 832-862MHz, DL: 791-821MHz), 900 MHz (UL: 890-915MHz, DL: 935-960MHz)

Frequency f-use

800, 900, 1800, 2100

Gain

UL: 65 ± 2dB, DL: 70 ± 2dB

VSWR

≤ 1.4

Output Power

UL: 15 ± 2dBm, DL: 21 ± 2 dBm

Impedance

50 Ω

In-band Ripple

≤ 6 dB

Spurious Emission

1 GHz to 12.75 GHz ≤ -30 dBm @ 30 kHz, 9 kHz to 1 GHz ≤ -36 dBm @ 30 kHz

Power Supply

100-240 VAC, 50/60Hz conv. DC 12V 2A; consume < 10W
Mechanical & Environmental Specifications
Connector

N-Type Female

Operating Temperature

-10°C to +55°C

Mass

≤ 1.3 kg

Dimensions (mm)

256 x 199 x 20
