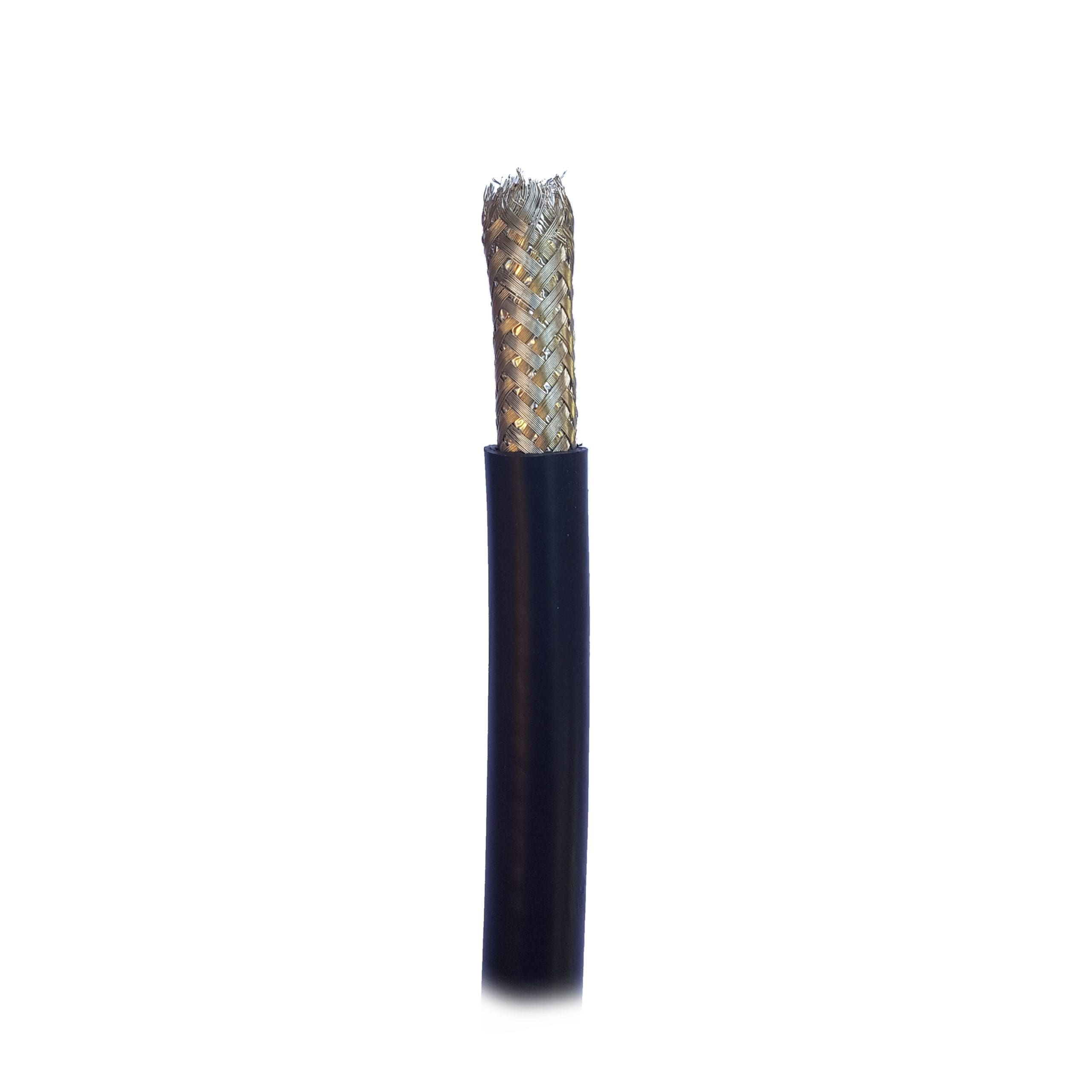

cable-RF-400-1

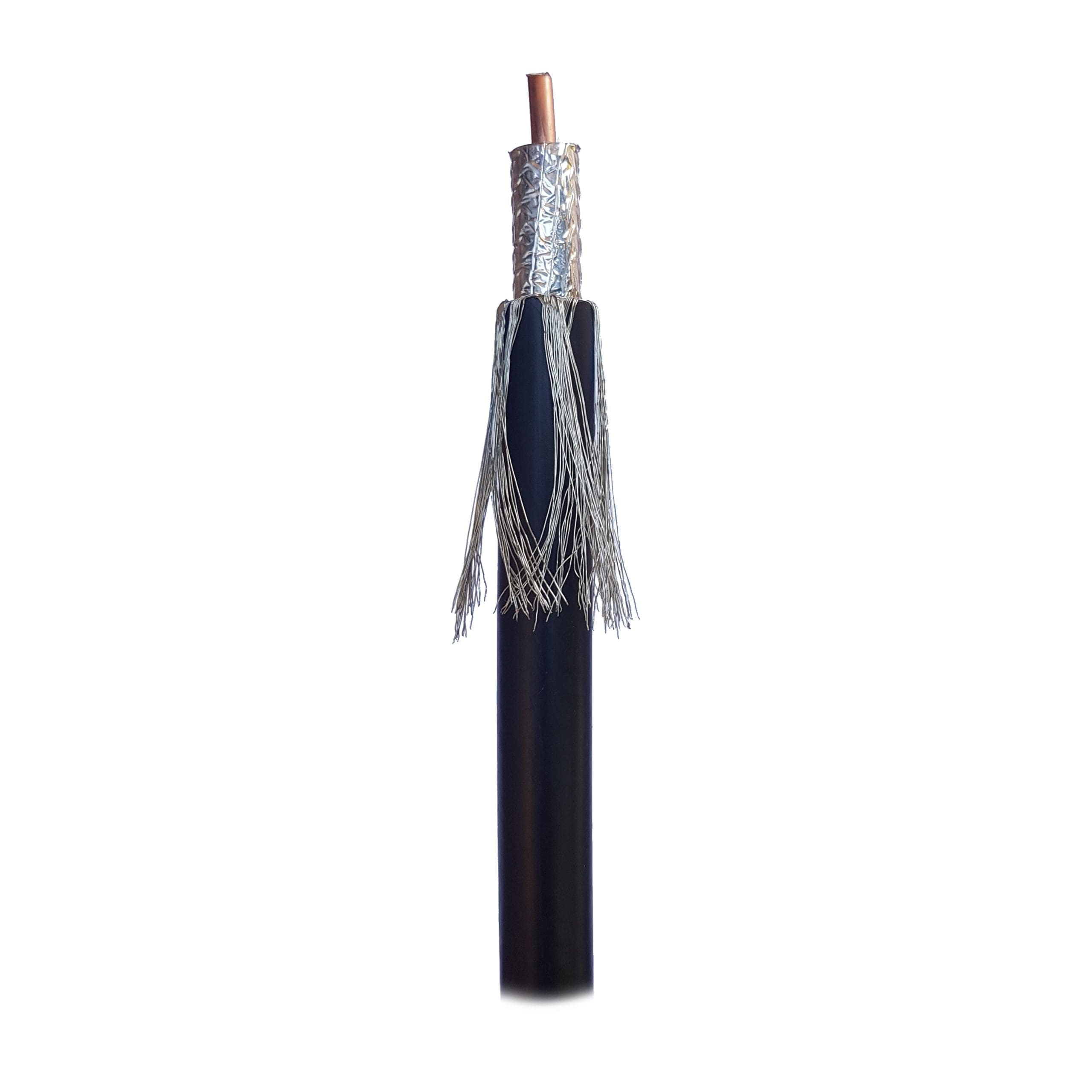

cable-RF-400-2
coaxial cable RF 400

RF400 Coaxial Cable (LMR400 Equivalent)

Be the first to leave a review.
SKU: 0111-1102

R 31.91 p/m incl.VAT

Out of stock

Join the waitlist to be emailed when this product becomes available

This RF400 Radio frequency (RF) coaxial cable at 50 Ohm, is used as an alternative for LMR400. With its UV-protected jacket and good performance, it is ideal for various applications. Minimum order quantities apply. Priced per meter.

Share

Be the first to leave a review.

R 31.91 p/m incl.VAT

Out of stock

This RF400 Radio frequency (RF) coaxial cable at 50 Ohm, is used as an alternative for LMR400. With its UV-protected jacket and good performance, it is ideal for various applications. Minimum order quantities apply. Priced per meter.

Share

Electrical
Impedance

50 Ω

Capacitance

77.1 pF/m

Velocity

85 %

VSWR

≤ 1.10 (0.8-1.0GHz), ≤ 1.15 (1.7-2.4GHz)

Shielding Effectiveness

> 90 dB

Inner Conductor DC Resistance

2.92 Ω/km

Outer Conductor DC Resistance

5.41 Ω/km
Construction Materials
Inner Conductor

Copper-Clad Aluminium

Dielectric

Foam Polyethylene (PE)

Outer Conductor

Bonded Aluminium Foil & Tinned Copper Braid

Jacket

Black Polyethylene (PE)
Dimensions
Inner Conductor Diameter

2.74 mm

Dielectric Diameter

7.24 mm

Outer Conductor Diameter

8.08 mm

Diameter Over Jacket

10.29 mm
Mechanical
Min. Single Bending Radius

125 mm
Environmental
Operating Temperature

-40°C to +80°C

Installation Temperature

-40°C to +80°C

Storage Temperature

-40°C to +80°C
Frequency (MHz) Attenuation (dB/100m) Average Power (kW)
30 2.20 2.91
50 2.90 2.21
150 5.00 1.28
220 6.10 1.05
450 8.90 0.72
900 12.80 0.50
1500 16.80 0.38
1800 18.60 0.34
2000 19.60 0.33
2500 22.20 0.29
3000 24.80 0.26
5800 35.50 0.18
