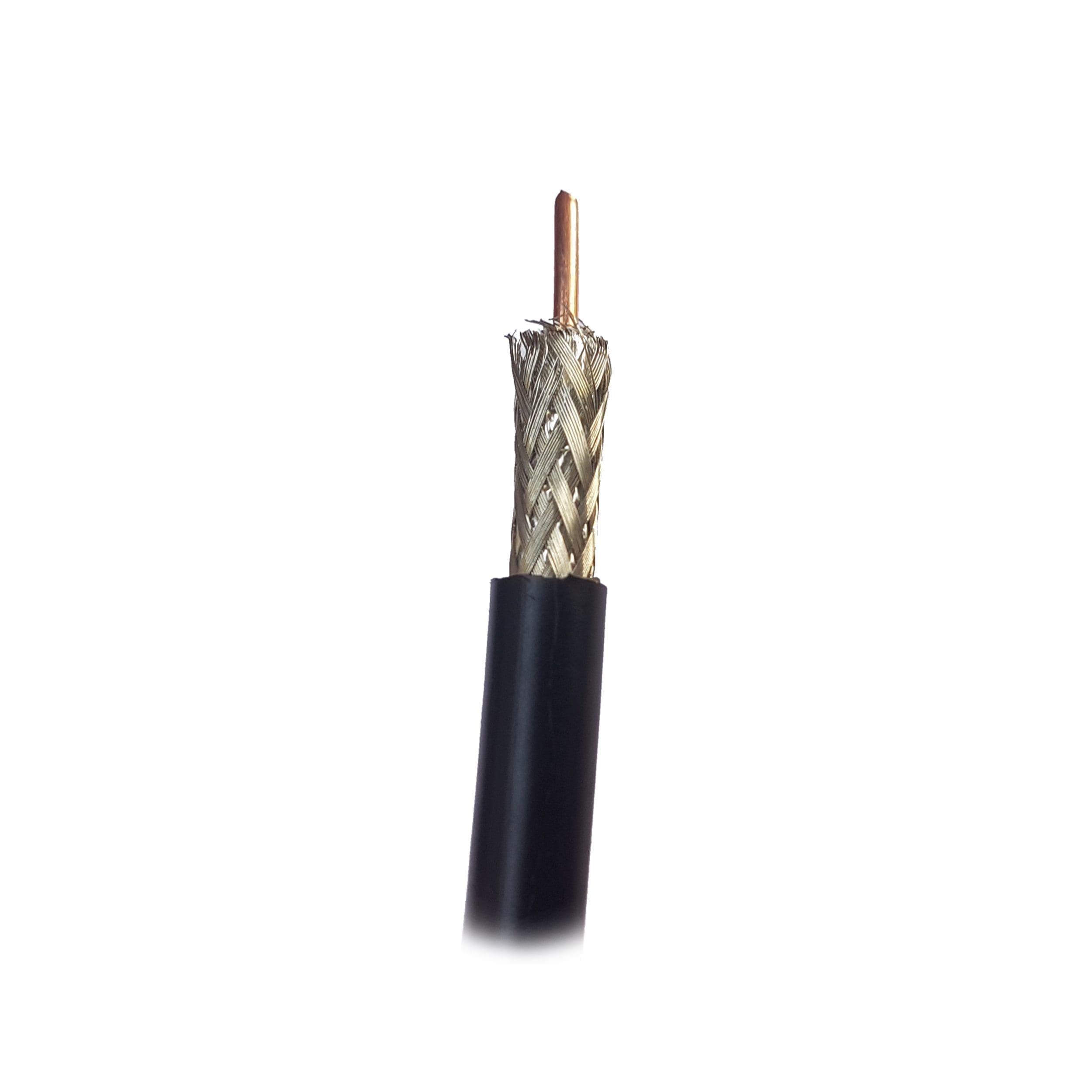

cable-RF-240-1
cable-RF-240-2

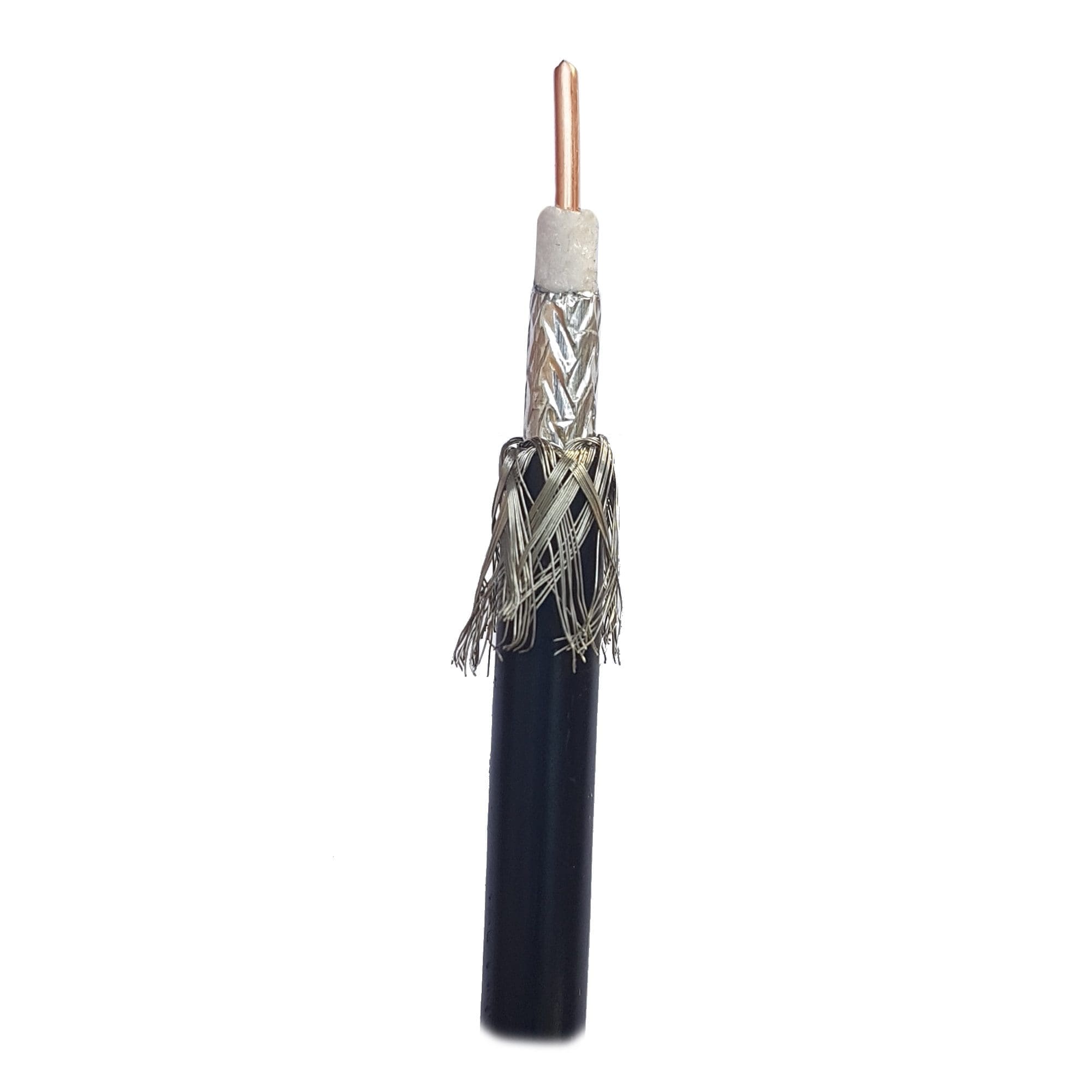

cable RF 240

RF240 Coaxial Cable (LMR240 Equivalent)

Be the first to leave a review.
SKU: 0111-2401

R 16.10 p/m incl.VAT

In stock

This RF240 Radio frequency (RF) coaxial cable at 50 Ohm, is used as an alternative for LMR240. With its UV-protected jacket and good performance, it is ideal for various applications. Minimum order quantities apply. Priced per meter.

Share

Be the first to leave a review.

R 16.10 p/m incl.VAT

In stock

This RF240 Radio frequency (RF) coaxial cable at 50 Ohm, is used as an alternative for LMR240. With its UV-protected jacket and good performance, it is ideal for various applications. Minimum order quantities apply. Priced per meter.

Share

Electrical
Impedance

50 Ω

Capacitance

79.4 pF/m

Velocity

84 %

Shielding Effectiveness

> 90 dB

Inner Conductor DC Resistance

11.43 Ω/km

Outer Conductor DC Resistance

13.40 Ω/km
Construction Materials
Inner Conductor

Bare Copper

Dielectric

Foam Polyethylene (PE)

Outer Conductor

Bonded Aluminium Foil & Tinned Copper Braid, Tinned Copper Braid

Jacket

Black Polyethylene (PE)
Dimensions
Inner Conductor Diameter

1.42 mm

Dielectric Diameter

3.81 mm

Outer Conductor Diameter

4.52 mm

Diameter Over Jacket

6.10 mm
Mechanical
Min. Single Bending Radius

30 mm
Environmental
Operating Temperature

-40°C to +80°C

Installation Temperature

-40°C to +80°C

Storage Temperature

-40°C to +80°C
Frequency (MHz) Attenuation (dB/100m) Average Power (kW)
30 4.40 1.30
50 5.70 1.00
150 9.90 0.58
220 12.00 0.48
450 17.30 0.33
900 24.80 0.23
1500 32.40 0.18
1800 35.60 0.16
2000 37.70 0.15
2500 42.40 0.13
5800 66.80 0.09
