Directional Panel MIMO Indoor Antenna

Categories

Directional Panel MIMO Indoor Antenna

SKU: 0632-0000

R 571.32 incl.VAT

In stock

Warranty: 12 Months

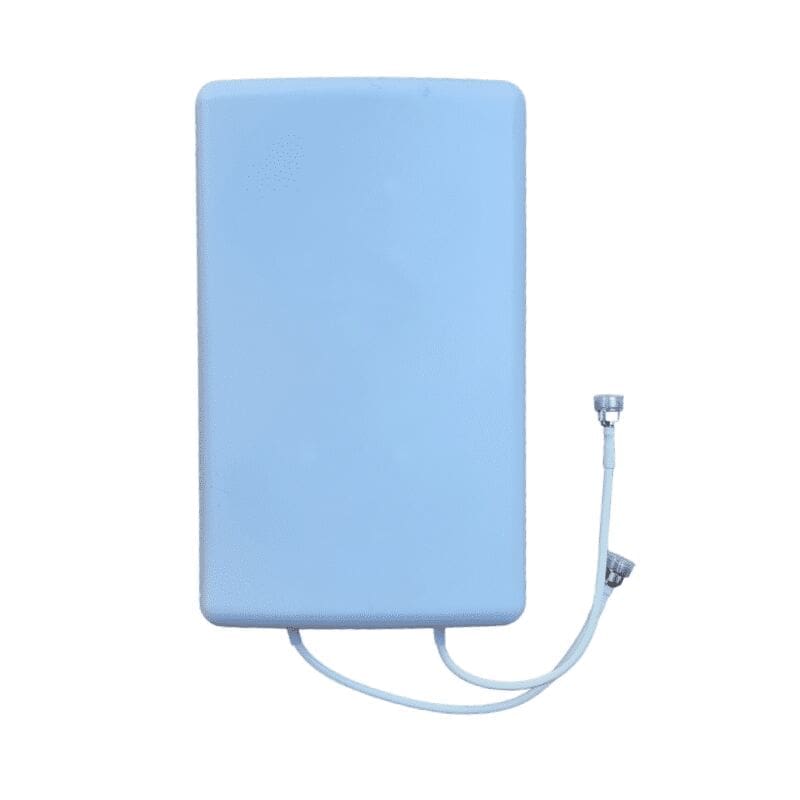

This wideband (698-3800 MHz), MIMO, directional panel antenna is for indoor use. With 6 dBi gain at 698-960 MHz, 7 dBi gain at 1710-2170 and 8 dBi gain at 2200-3800 MHz, its ideal for power-conservative applications. It interfaces with an N-type Female connector and includes a wall-mount bracket.

Share

R 571.32 incl.VAT

In stock

Warranty: 12 Months

This wideband (698-3800 MHz), MIMO, directional panel antenna is for indoor use. With 6 dBi gain at 698-960 MHz, 7 dBi gain at 1710-2170 and 8 dBi gain at 2200-3800 MHz, its ideal for power-conservative applications. It interfaces with an N-type Female connector and includes a wall-mount bracket.

Share

MAIN FEATURES:

• Suitable for indoor use
• Wall mount installation
• “Pigtail” cable with N-female connector
• Mounting kit included
Electrical
Gain

6 ± 0.5 dBi (698-960MHz), 7 ± 0.5 dBi (1710-2170MHz), 8 ± 0.5 dBi (2200-2700MHz), 8.5 ± 0.5 dBi (3300-3800MHz)

Horisontal 3dB Beamwidth

55° (3300-3800MHz), 60° (2200-2700MHz), 65° (1710-2170MHz), 80° (698-960MHz)

Vertical 3dB Beamwidth

30° (3300-3800MHz), 50° (2200-2700MHz), 60° (1710-2170MHz), 70° (698-960MHz)

VSWR

≤ 1.8

Impedance

50 Ω

Polarisation

Linear Horisontal/Vertical for each Radiator

Maximum Power

50 W

Passive Intermodulation (PIM)

≤ -150 dBc @ 2×2 W

Lightning Protection

DC ground

Mechanical
Connector

N-Type Female

Operating Temperature

-40°C to +70°C

Relative Humidity

5% to 95%

Radome Material

UV-Protected ABS

Colour

White

Dimensions (mm)

320 x 210 x 70

Mass

± 1.2 kg
