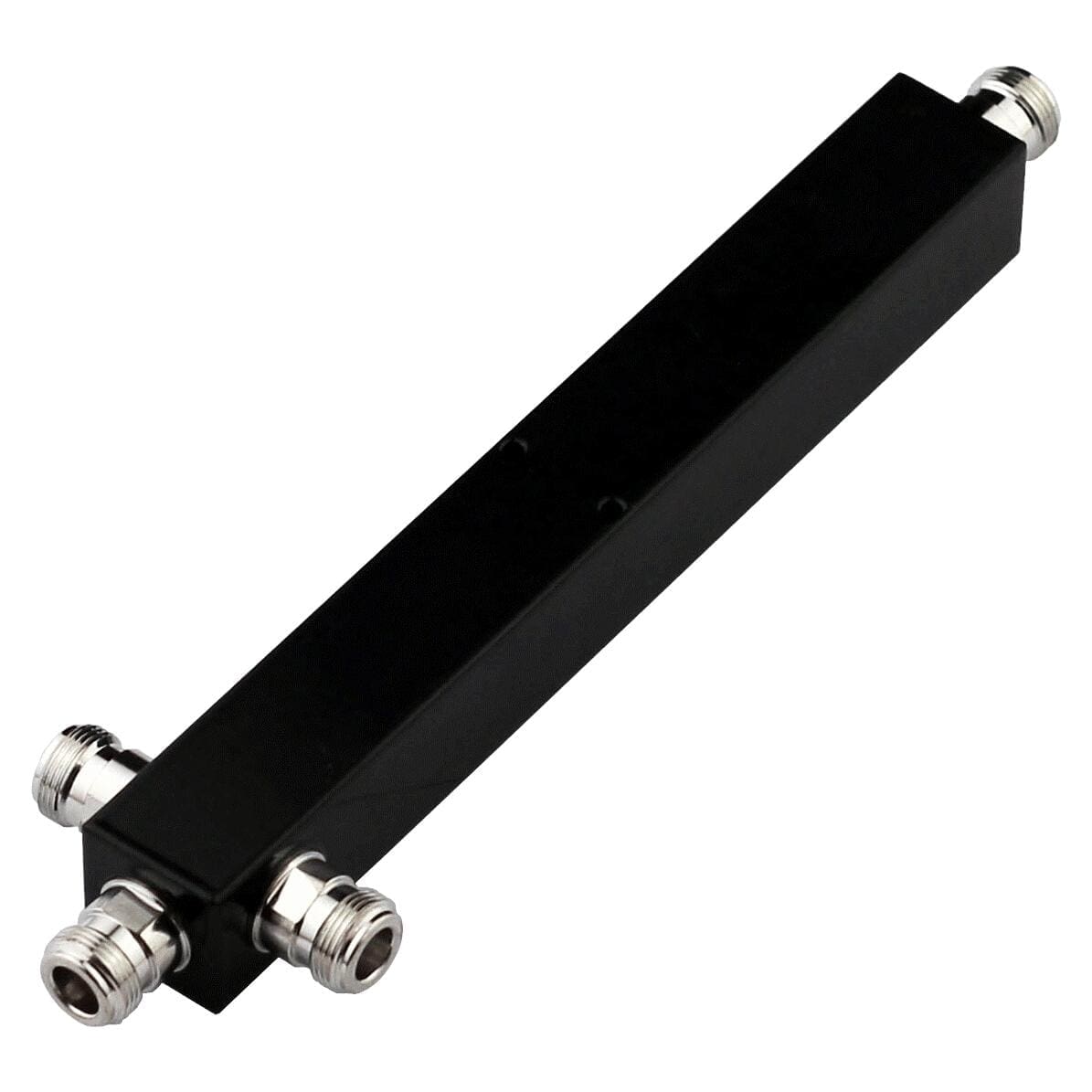

3-Way High Power Cavity Splitter, N-Type Female, 698-3800MHz

Categories

3-Way High Power Cavity Splitter, N-Type Female, 698-3800MHz

SKU: 0504-0222

R 483.00 incl.VAT

Brand: RFO Distribution (In-House)

In stock

Warranty: 12 Months

This 50Ω 3-way cavity splitter, rated at 300W, is able to handle high power over a wide frequency range (698MHz – 3800MHz). It features four N-type female connectors as interface. Having low Passive Intermodulation (PIM  ≤ -153 dBc), insertion loss (≤ 4.8 dB), and rated IP65, its performance is sure to be reliable for both indoor and outdoor environments.

Share

R 483.00 incl.VAT

Brand: RFO Distribution (In-House)

In stock

Warranty: 12 Months

This 50Ω 3-way cavity splitter, rated at 300W, is able to handle high power over a wide frequency range (698MHz – 3800MHz). It features four N-type female connectors as interface. Having low Passive Intermodulation (PIM  ≤ -153 dBc), insertion loss (≤ 4.8 dB), and rated IP65, its performance is sure to be reliable for both indoor and outdoor environments.

Share

MAIN FEATURES:

• Multiple-Band Frequency Ranges
• High Reliability
• Easy mounting (Without bracket)
Electrical
Frequency

698 to 3800 MHz

Insertion Loss

≤ 4.8 dB

VSWR

≤ 1.25

Impedance

50 Ω

Maximum Power

300 W

Passive Intermodulation (PIM)

≤ -153 dBc @ 2 x 20W

Mechanical
Shape

Square

Connector

N-Type Female

Operating Temperature

-25°C to +70°C

Storage Temperature

-40°C to +85°C

Relative Humidity

5% to 95%

Cavity Material

Aluminium with Silver plating

Connector Material

Copper with Silver plating

IP Rating

IP65
